Ceramic Grinding Media-Two Kinds Of Zirconia Ceramic Bead

Categories: Industry NewsStars: 3Stars Visit: - Release time: 2019-08-14 10:22:00
Font size:【 Large Middle Small Source: Editor: Author: Chemshun 01

1.With the more demand for the Ceramic grind media, especially for zirconia ceramic ball, this kind becomes a favorite in the grinding material field. With superior quality and performance, Chemshun zirconia ceramic beads fulfill the requirement of many industries such as battery,materials, magnetic materials,silicon oxide,kaolin,cacluim carbonate,titanium dioxide,coating,pigment,dye,ink,papermaking,blasting,mining, etc,

2.Here we introduce two main kinds :Yttria stabilized zirconia bead and Ceria stabilized zirconia bead.

1) Yttria stabilized zirconia beads is shorten as Y-TZP zirconia ceramic balls, it has 30-50 times higher wear-resistance as glass beads,5 times higher as zirconium silicate beads and 6-8 times higher as Al2O3 beads. Because of the high density and excellent grinding efficiency of Y-TZP beads, they greatly apply to grinding and dispersing high viscosity materials.
Its technical specificatio and its appearance are shown below:

 Item
 Value
 Oxide Proportion ZrO2: 94.8%±0.2%; Y2O3: 5.2%±0.2%
 Specific Density >=6.00g/cm3
 Bulk Density >=3.7g/cm3
 Vickers Hardness >1200HV
 Compressive Strength
 >2.0KN(Φ2mm)
 Self Consumption <0.5ppm/h
 Roundness >=0.96 (Xmin/Xmax)
 Surface Glossiness Smooth
 Color White
 Diameter range

0.1mm-55mm. It can be customized.

 ApplicationPaint and varnish industry, ceramic industry, pest management, beauty culture, pharmacy, battery material etc.

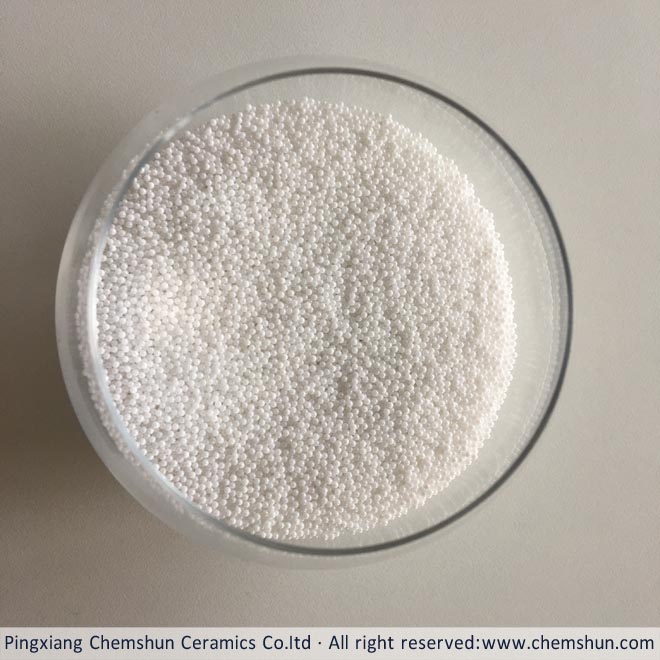

Yttria stabilized zirconia beads


2) Ceria stabilized zirconia beads can be called as Ce-TZP zirconia ceramic balls,with the properties of never aging and never broken, It has a very long service life, and its abrasion is the smallest of all zirconia ball with excellent wear-resistance performance. It widely used in grinding of factories of inks, paper, paints, metal and non-metallic mineral etc.
Its technical specification and its appearance are shown below:

 Item
 Value
 Oxide Proportion ZrO2:83-87%, CeO2: 9-13%, Others:<2.0%
 Specific Density >=6.10g/cm3
 Bulk Density >=3.75g/cm3
 Vickers Hardness >1150HV
 Compressive Strength
 >1.5KN(Φ2mm)
 Self Consumption <0.8ppm/h
 Roundness >=0.97 (Xmin/Xmax)
 Surface Glossiness Smooth
 Color Yellow/Brown
 Diameter range

 0.3mm-30mm. It can be customized.

 Application

 Inks,paper,paints,metal and non-metallic mineral


Ceria stabilized zirconia beads

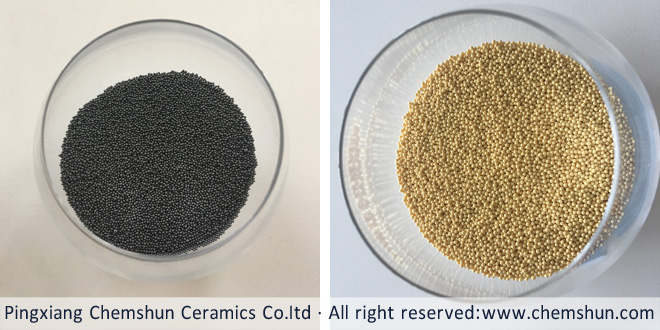

3) When we make a comparison for Y-TZP abd Ce-TZP ceramic balls, they have some different aspects as following:
In term of the applicable industry, the scope of the white ball(Y-TZP) is more larger than the yellow ball(Ce-TZP).
In term of hardness, the Y-TZP beads is better than the Ce-TZP beads,
In term of density, the Y-TZP beads is higher than the Ce-TZP beads
In term of self consumption, the Y-TZP beads is better than the Ce-TZP beads
In term of the price , the Y-TZP beads is higher than the Ce-TZP beads
In term of the grind mill, the Ce-TZP beads is used only in sand mill, while the white  ball(Y-TZP) can be used in sand mill and ball mill.
Also they have something in common,they are can be used in the same industry,and popular in the market.

3.Pingxiang Chemshun ceramics is a professional manufacturer of the ceramic grinding media, we make various kinds of ceramic balls in different densities for grind mill, If you have any interest, you can contact us by mail: office@chemshun.com or call us by the telephone : +86-799-6790781.
