How About the Anti-erosion Ability of Wear Resistant Ceramic Pipes?

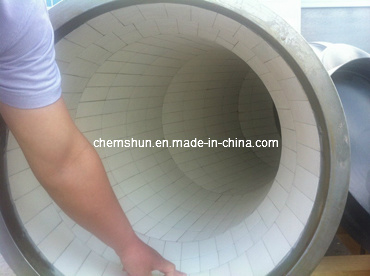

The biggest feature of the wear resistant ceramic pipe is that a layer of wear resistant ceramic is compounded inside the steel pipe. The wear resistant ceramic itself has high hardness, high strength, and has a very smooth surface. It has many superior properties. So, is the wear resistant ceramic pipe resistant to erosion?
To evaluate whether the wear resistant ceramic pipe is resistant to erosion, it is first necessary to understand several key factors that affect the erosion resistance of the pipe-hardness, smoothness, gap size and scouring angle.
Hardness: The hardness of the lining of the wear-resistant ceramic tube is above HRA85, second only to diamond, and the amount of wear in the material scouring is very small, which is the basis for its resistance to scouring.
Smoothness: The smoothness determines the friction between the material and the pipe, and the wear-resistant ceramic itself is dense and has almost no pores. It has to be polished many times during the production process. The smoothness is very high and it is resistant to erosion. Excellent performance.
Gap size: Many wear resistant ceramics inside the wear resistant ceramic tube are compounded with the pipe by the method of pasting, which leads to gaps between the wear resistant ceramic sheets, and the material erosion often damages the pipe from these gaps, so If the gap is small, the erosion resistance of the pipeline is strong. When the Chemshun wear resistant ceramic tube is applied to the porcelain, fillers are used to fill the gap, which further improves the erosion resistance of the wear resistant ceramic tube.
Scouring angle: In material scouring, the right angle is the impact angle with the greatest impact, while the wear resistant ceramic tube can pass through trapezoidal angles, etc.
In summary, the wear-resistant ceramic tube has excellent erosion resistance.
