Weldable tile and Its Installation

Categories: Latest NewsStars: 3Stars Visit: - Release time: 2019-03-14 16:45:00
Font size:【 Large Middle Small Source: Editor: Author:

As the professional wear resistant alumina tiles manufactuer in China, Chemshun Ceramics afford the solution for industries and solve the client’s industrial wear problem. Many customers asked us the weldable tile and its installation, such as one client require the alumina ceramic plate inclusive the hole + plug(block) with shell. In the hole there should put a steel plug / shell and weld the plate in the bunker and need a ceramic (AL2O3 92%) circle to close the hole.

Chemshun Ceramic make sure that we can produce alumina ceramic weldable alumina tiles as client’s requirement, and we attach a drawing of standard weldable tile and its installation for their reference.

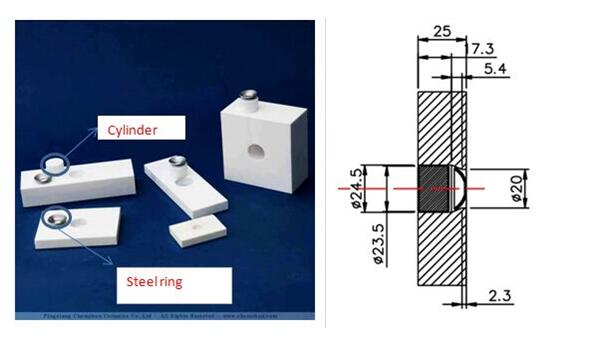

Chemshun Standard weldable tile:

Weldable tile


Chemshun installation of weldable tile:

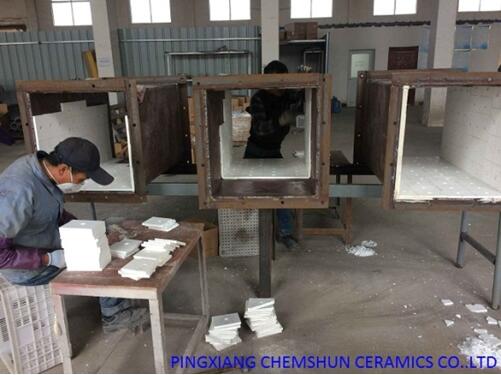

Weld tiles in chute and dust collector:

weldable alumina tile installation

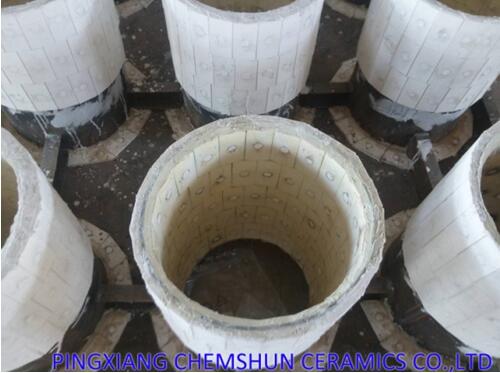

steel pipe with weldable alumina plate

1.       Cleaning the device surface first.

2.       Mixing the epoxy resin adhesive as per requested proportion. The adhesive must be used up within 30 minutes after mixing.

3.       Applying the mixed epoxy resin adhesive onto the back of Chemshun alumina tiles or by large installation areas direct on the steel construction.

Notice: Epoxy resin adhesive will be visible on the top surface of the tile, it is not necessary to clean the surface.

4.       Carefully putting the Chemshun ceramic tiles on the casing and pressing the welding washer(welding insert/wedding metal) into the hole.

5.       Welding: the normal welding washer(welding insert/wedding metal) is cold rolled steel which can be plug welded using conventional welding procedures.

6.       Placing a little epoxy resin adhesive into the hole and then carefully pressing the ceramic plug(ceramic cap) into the adhesive.

Note: after 24 hours the adhesive hardens up and the installation is ready to use.



Chemshun Ceramics are positive to seize the opportunity for providing the solution include one-stop service plus installation for client, once you have such demand about weldable tiles in the following days, please feel free let us know.

In addition, we also can produce alumina mat and ceramic lagging, and can afford the corresponding the installation guide, welcome you contact us if you have interests. For more information welcome to visit website of Pingxiang Chemshun Ceramics Co.,ltd.
