Reaction Sintered Silicon Carbide (SISIC) Lining Tube
In order to meet different request of client, Pingxiang Chemshun Ceramics CO, Ltd can provide the different wear resistant solution with different material. Besides alumina wear resistant ceramic products, we also have the SIC material as wear resistant ceramic liner.
Firstly you can feel the advantage of silicon carbide material from material data sheet:
Item | Unit | Data |
Max.working temperature | ℃ | 1380 |
Bulk density | g/cm3 | ≥3.02 |
Porosity | % | <0.1 |
Bending strength | Mpa | 250(20℃) |
Mpa | 280(1200℃) | |
Modulus of Elasticity | Gpa | 330(20℃) |
Gpa | 300(1200℃) | |
Thermal conductivity | W/m.k | 45(1200℃) |
Coefficient of thermal expansion | K-1x10-6/℃ | 4.5 |
Moh’s Hardness | 13 | |
Acid-alkali Resistance | Excellent |
Silicon carbide material has high strength, high hardness, good wear resistance, high temperature resistance, corrosion resistance, good thermal shock resistance, thermal conductivity and good antioxidant properties, it can be a wonderful material of kiln furniture in sanitary ware, insulator and tableware industries, a structural part serve in coal, metallurgy, environment, construction tiles, electronic ceramics, chemical and mechanics industries, a preferable wear-resistant part utilized in a vast range of normal, high temperature and wearing working conditions like separate transmitting equipment, high speed nozzle and seal parts, etc.

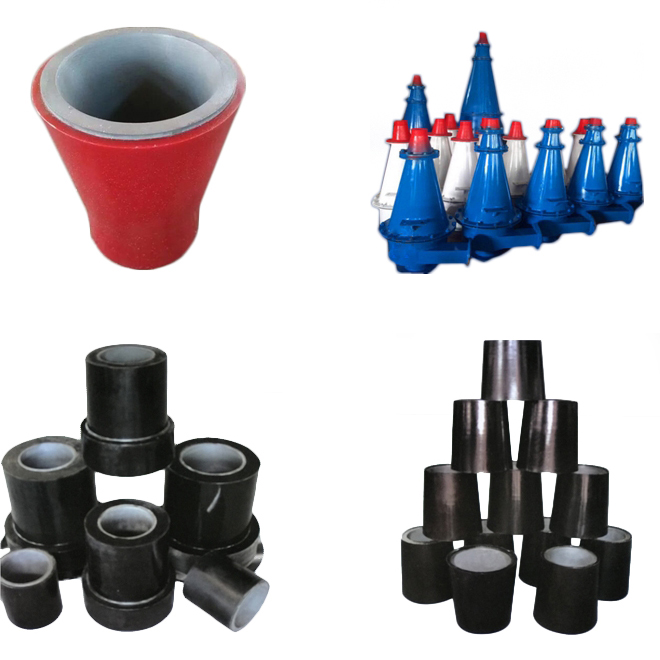

Reaction sintered silicon carbide ceramic tube has high hardness, wear resistance, impact resistance, high temperature resistance, acid and alkali corrosion resistance and other characteristics, the actual service life is polyurethane materials more than 7 times, particularly applicable to mineral processing and mixing industry strong corrosion, the coarse particle materials classification, concentration, dehydration and other industries, also widely used in coal mining industry, water conservancy, oil. For example, silicon carbide ceramic lining tube, elbow tube, tee, silicon carbide cyclone lining, etc., especially suitable for mineral processing industry.
One
of our client ask for the wear resistant ceramic material, because
polyurethane material in top of hydrocyclones need to be changed,
finally we recommend the polyurethane with silicon carbide material.
It’s
well known that polyurethane is a kind of polymer material between
plastic and rubber. It has high strength of plastic and high elasticity
of rubber. It is a kind of wear-resistant material with excellent
comprehensive performance. High wear resistance, even more than some
alloy steel, it is widely used in hydrocyclone lining, the service life
is more than four times that of high chromium cast iron, but it is not
wear resistant than silicon carbide. It is excellent to combine
polyurethane and silicon carbide material together.
If you have demand of wear resistant ceramic products, welcome to contact Pingxiang Chemshun Ceramics CO.,Ltd, we are pleasure in providing different solution like alumina, zirconia and silicon carbide material for you.
