Square Ceramic Tile

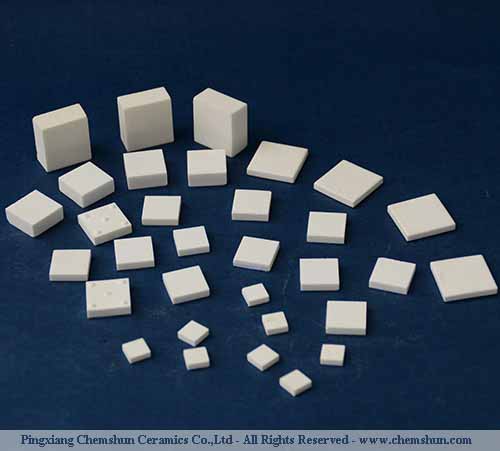

Chemshun Square mosaic tiles are used as lining with advantage of wear-resisting, impact resisting, easy operation, etc

Product Introduction

Chemshun Alumina Wear Resistant Ceramic square lagging ceramic alumina tile are used as lining with advantage of wear-resisting, impact resisting, easy operation, etc., is ideal surface wear-resisting material of material transfer equipment in iron & steel works, thermal & power plants, mine, etc. can extend operating life of equipment effectively. It is widely used as tile mat lining in conveying engineering to protect the belts in mining industry and agriculture,etc.

Raw Material:

The alumina wear resistance ceramic products are made from the high purity, super fine and single narrow particle high-quality grain alumina powder, which is spray-dried processing, formed by cold isostatic pressing , firing on 1520 º C~1650 º C  temperature. Subject  to Al2O3 content difference, chemshun machinery ceramic lining have 92%, 95%,wear  resistance  ceramics.

Advantage ofthe material:

1)High hardness:

Its rockwell  hardness is HRA80-90 and  the Moh's hardness is up to 9 grade with is only less than diamond.And its abrasion-resistant is more better than steel and stainless steel;

2)Superior Abrasion-resistance

Its abrasion-resistance is 171.5times of Chrome steel and 260 times of manganese steel materials and as per our customers' feedback, it could prolong the use life of equipment for more than 10years under same  working conditions.

3)Light weight

Its density is 3.6-3.75g/cm3, high wear resistent liners is only half weight of steel, and could reduce the load on equipment.

Product Technical Data （1：wear resistant ceramic)

Product PDF Brochure Download
