Product Name:SSIC Ceramic Seal Ring
- Product Category:
- Product Details:
- E-Mail:

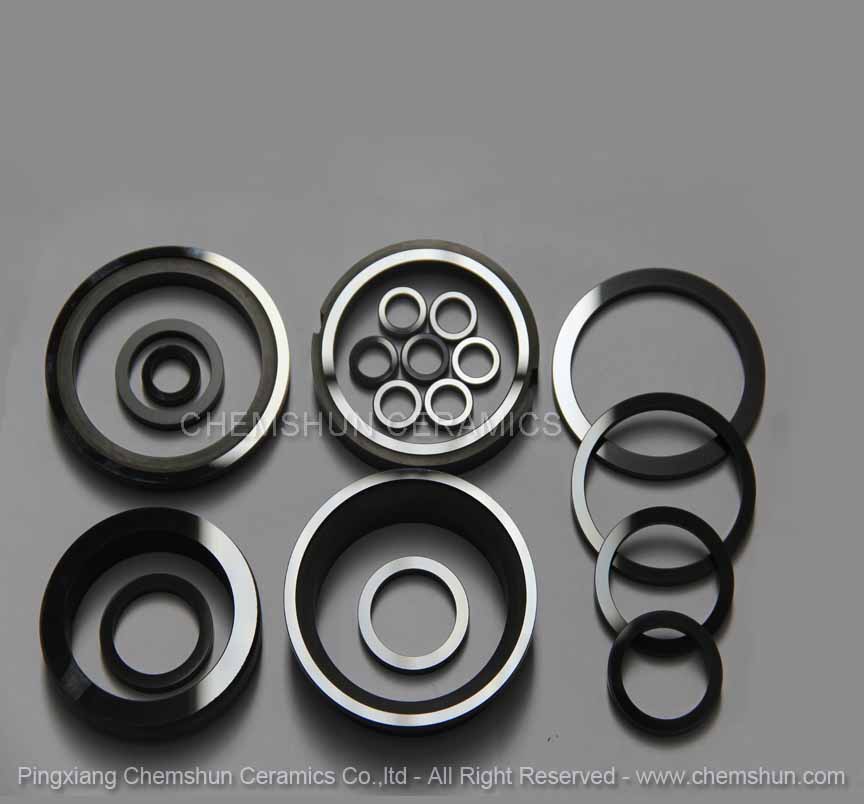

Pressureless Sintering (SSIC )Silicon Carbide Seal Ring
1. Description of SSIC
Silicon Carbide Sintered SiC ring was originally produced by a high temperature electro-chemical reaction of sand and carbon. Silicon carbide is an excellent abrasive and made into grinding wheels and other abrasive product, like sic ceramic seal ring. Today the material has been developed into a high quality technical grade ceramic with very good mechanical properties. It is used in abrasives, refractories, ceramics, and a large number of high-performance applications. Silicon Carbide can also be made an electrical conductor and has applications in resistance heating, flame ignite and electronic components.
2. Typical Characteristics:
1. High Hardness, Out Standing Wear Resistance
2. High Strength Over A Wide Temperature Range
3. Excellent Thermal Shock Resistance
4. Excellent Oxidation Resistance
5. Very Low Friction Coefficient
6. Low Thermal Expansion and High Thermal Conductivity
3. Typical Applications:
1. Mechanical Seal
2. Heat Exchanger
3. Bulletproof Plate
4. Ball Vlave Parts
5. Pump Components
6. Semiconductor
7. Metallurgical Engineering
8. Fixed and Moving Turbine Components
4. Packaging Details : Export Carton, Wooden Box
5. Technical Data :
Properties | SSiC |
Bulk denstity SiC (Vo1%) | ≥99
|
Bulk density (g/cm3) | 3.10-3.15 |
Apparent porosity (%) | <0.2 |
Modulus of rupture at 20℃ (Mpa) | 400 |
Modulus of rupture at 1200℃ (Mpa) | 650 |
Modulus of elasticity at 20℃ (Gpa) | 410 |
Thermal Conductivity at 1200℃ (w.m-1.k-1) | 55 |
Thermal expansion at 1200℃ (a×10-6/℃) | 4.0 |
Thermal shock resistance at 1200℃ | Very good |
Max.working temperature (℃) | 1600 |
