Product Name:Hex Rubber Ceramic Wear Plate
- Product Category:
- Product Details:
Hex Ceramics Rubber Linings The major applicable industries are Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces. - E-Mail:
Alumina Ceramic rubber composite liner with excellent impact resistance, abrasion resistance.
Ceramic rubber composite liner Features:
> High wear and abrasion resistance.
> Long wear life, low maintenance and downtime.
> Significant noise reduction
> Corrosion resistant
Product description:

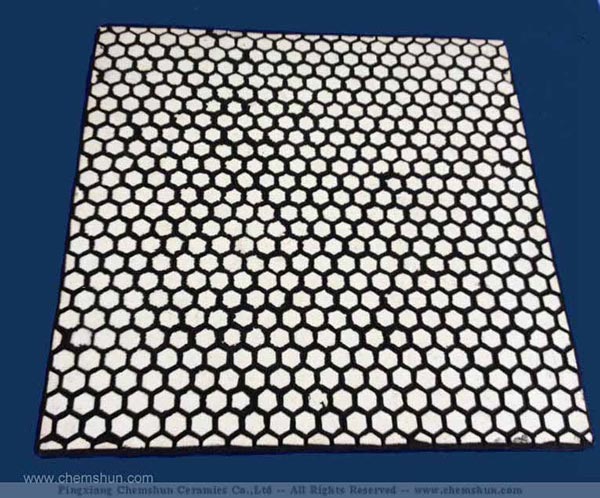

Hex rubber ceramic wear plate ( Rubber Ceramic Panels ) is made by a combination of wear resistant alumina ceramics (cylinders,hexagon, plates) vulcanized in resistant rubber base, some rubber plates can selectively with steel backing.
The alumina ceramic liner provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics. Rubber also helps to substantially reduce the vibrations, sounds, and the impact shock generated from impacting rocks.
As excellent impact and wear resistant material,The Rubber ceramic liners is suitable for feeders, chutes, bins, transfer points, in conveyor systems, screen feed plates, mill discharge chutes, bunker etc. The major applicable industries are Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces.
Applications of rubber ceramic chute ceramic liner:
> conveyor chutes
> reflectors and impact plate
> bins, hoppers
> conveyor skirt liners
> stackers and reclaimers
Chemshun Standard Size :
Size Sheet | |
600*600*30 mm | |
600*600*37 mm | 250*250*30 mm |
300*300*63 mm | 250*250*37 mm |
500*500*25 mm | 200*200*25 mm |
500*500*37 mm | |
450*300*63 mm | |
500*500*63 mm |
Ceramic shape vulcanized on the rubber :
Ceramic hex.tile, ceramic square tile, ceramic bricks are available from 10x 10 mm to 100 x 150 mm; thickness from 2 mm to 50 mm.

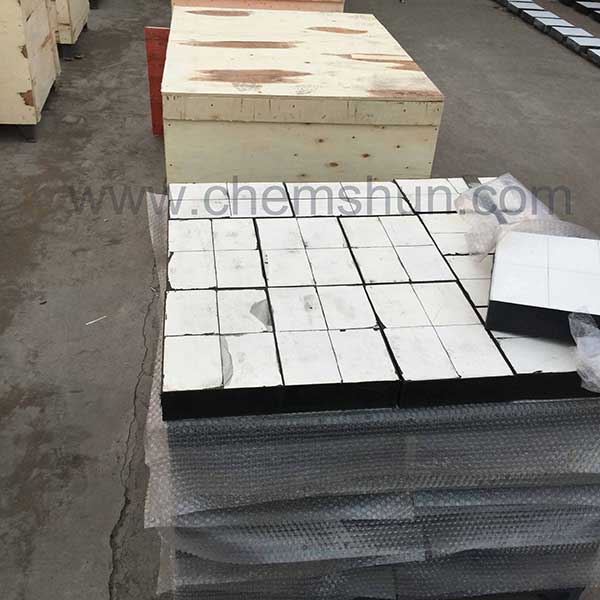

Chemshun popular wear ceramic rubber panel including: Panel With Dimple Ceramic; Panel With Hex. Ceramic; Panel With Cylinder Ceramic.
Product Structure
-- metal+rubber+ceramic
-- rubber+ceramic
-- Ceramics + Metal sheet
The property of vulcanized ceramics
Property | Value |
Normal Size | 500*500mm , 300*300mm,250*250mm |
Ceramic Thickness | 15~50mm |
Rubber Thickness | 3mm~10mm |
Type of Rubber | Vulcanized natural rubber compound with carbon |
Rubber Shore A hardness | 45 (+/-5) |
Rubber Tensile Strength | 2710 psi |
Rubber Elongation | 600% |
Rubber-ceramic bond | Surface chemical pre-treatment of ceramic prior to hot pressure vulcanized |
Ceramic tile (Thk) | 2mm~50mm (mosaic tiles, plain tile etc.) |
Vulcanized ceramics | square mosaic tile, rectange tile , plain tile , hex tile , cylinder |
Alumina Content | Al.2O3 92% 95% |
Product Technical Data (1:wear resistant ceramic)
