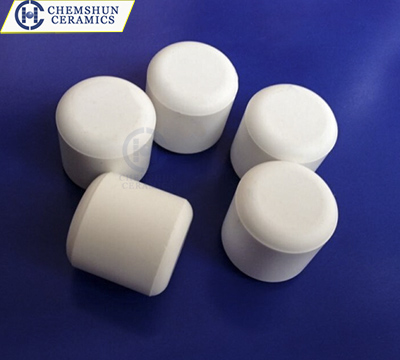

Product Name:95% Grinding Cylinder
- Product Category:
- Product Details:
Chemshun 95% Alunima ceramic cylinder is better than normal 92% grinding ball in property. - E-Mail:
Chemshun High Alumina Grinding Cylinder is used as grinding media for ceramic body and glaze preparation.
High Alumina ceramic Grinding Cylinder is used as grinding media for ceramic body and glaze preparation. It’s high purity and low abrasion loss make it to be suitable for both wet and dry superfine grinding of alumina, zirconium silicate, glaze, kaolin clay, quartz, feldspar, inks and ceramics in ball mill.
Product Features:
(1)Excellent wear and corrosion resistance; Chip-proof, acid-resisting, alkali-resisting, anti-abrasion, high thermal shock resistance;
(2)High density and small thickness can increase the effective ground space and increase the yield;
(3)Low wear loss and long service life (it is 3-5 times compared with nature stone liner and 23 times compared with rubber liner),which can reduce the installation times;
(4)Main material is alumina which has no pollution to the grinding object,Easy to clean;
(5)Shorten milling time and increase efficiency.
Application:
Chemshun High Alumina Grinding Cylinder is used as grinding media for ceramic body and glaze preparation. It’s high purity and low abrasion loss make it to be suitable for both wet and dry superfine grinding of alumina, zirconium silicate, glaze, kaolin clay, quartz, feldspar, inks and ceramics in ball mill.

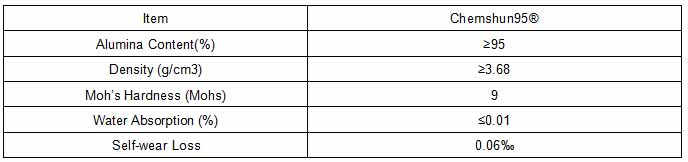

Alumina Ceramic Grinding Media data
Technical Data:
Specification (Size):
Product | Diameter (mm) | Height(mm) |
Cylinder | ||
(with chamfer ) | 31±0.5 | 31.5±0.5 |
Remark: Any other sizes are available upon customer’s requests. |
Product Packaging: PE Bag (25kg/bag)+Pallet
Ceramic grinding media of alumina cylinders Packaging
Benefits
> Suitable for wet grinding and dry grinding
> Forming by isopressing makes the cylinder’s hardness is better than the rolled grinding ball.and the chamfer edges makes the cylinder smoother to grind.
> The high purity raw material of Australia alumina powder and technology keep the media in the best to wear the abrasion and also could keep the grinding time longer than other grinding media.
> The high quality has been accepted by most of big famous Italian customers
Service:
Any requirment about chemshun Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
Product Technical Data (2- Ceramic Grinding Media)
