Product Name:Cement Mill Grinding Ball

  • Product Category:
    • Product Details:
      Chemshun cement mill applied alumina ceramic grinding balls with high abrasion resistant and low abrasion loss,which has many advantages than chromium steel balls
    • E-Mail:

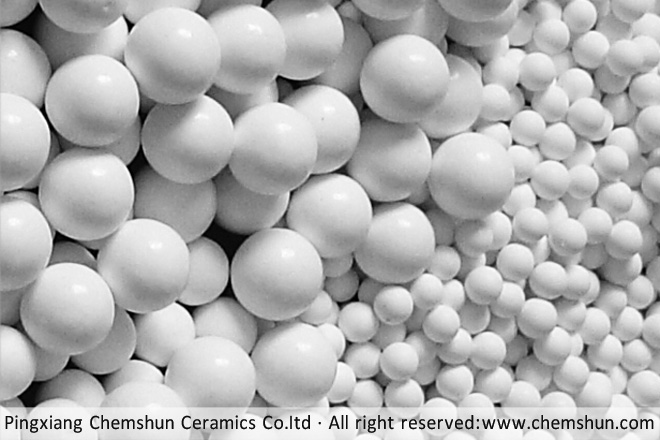

    Alumina Grinding Media for Cement Mill


    With the advantages of high density , low cost , excellent abrasion properties . Chemshun Cement Mill Grinding Ball becomes an ideal ball mill media instead of traditional high chromium steel balls for cement mill.

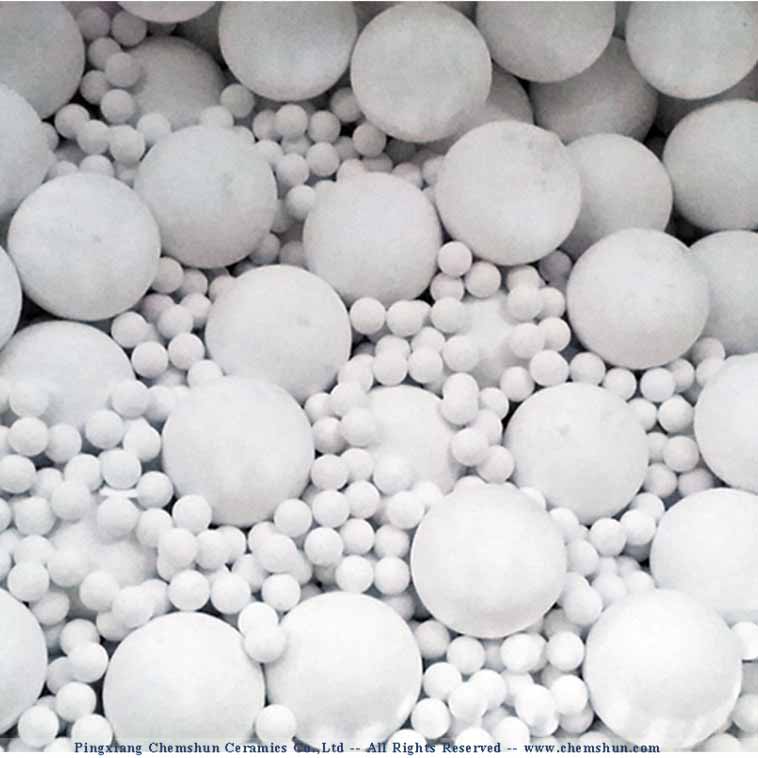

    Alumina balls for cement milling.jpg

    Six Advantages of Alumina Grinding Media Instead of High Chromium Steel Ball For Cement Mill Application:

    1)  Save Power

    -- Reducing the mill loading 20%

    -- Saving power above 15% per ton cement

    2)  Improve quality

    -- Improve the grinding efficiency

    -- Improve the performance of cement

    -- Rationalize the grains distribution more better

    -- Increase 2% of the grain 3-32 μm

    -- Improve the spheroidization efficiency

    -- Decrease 1~2% water in same standard consistency

    -- Adapt the concrete admixture for cement well

    3) Reduce Current

    -- The current of mill mainframe is reduced by more than 20%

    4)  Cooling and noise reduction

    -- The temperature could be down more about 20℃

    -- Good effect of noise reduction

    5)  Excellent abrasion

    -- The abrasion loss of chemshun alumina grinding media for cement mill is about a half of steel ball

    6)  Protect environment

    -- Using of chemshun alumina grinding ball could protect environment effectively

    Physical properties comparision with chromium steel balls

    Materials

    Density

    Bulk weight

    Moh’s Hardness

    Crushing

    Rate

    Abrasion

    Loss

    g/cm3

    Kg/cm3

    Grade

       %

     g/ Kg.h

    High chromium steel ball

    7.6-7.8

    4500

    6.8

    <1-3

     0.18

    Chemshun alumina Ball

    3.6-3.8

    2200-2300

    9.0

    <1-3

     0.09

    Properties of Alumina ceramic cement mill ball :

    Properties

    Unit

     CHEMSHUN 92

    CHEMSHUN 95

    Al2O3

    %

    >92

    >95

    SiO2

    %

    <5

    <4

    Cao+MgO

    %

    <2

    <2

    Density

    g/cm3

    >3.60

    >3.70

    Bulk weight

    kg/cm3

    2200

    2300

    Moh's hardness

    Grade

    9

    9

    Rockwell hardness

    HRA

    83-85

    85-87

    Water absorption

    %

    0

    0

    Size - Molding by cold isostatic pressing :

    Diameter (mm)

    Ф80

    Ф70

    Ф60

    Ф50

    Ф40

    Ф30

    Ф25

    Range

    80±3

    70±3

    63±2

    52±2

    40±2

    32±1.5

    26±1.5

    Size - Molding by rolling :

    Diameter (mm)

    Ф20

    Ф17

    Ф15

    Ф13

    Range

    20 ± 1

     17±1

    15±1

    13±1

    Alumina Ceramic Grinding Media data

    Service:

    Any requirment about chemshun Alumina Ceramic Grinding Ball for cement, Alumina beads/Zirconia beads for mining industry, Alumina Ceramic Square Mosaic Tile, Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781

    Export:

    Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.


    Product Technical Data (2- Ceramic Grinding Media)

    Product PDF Brochure Download
