Product Name:Ceramic Lined Pipe

  • Product Category:
    • Product Details:

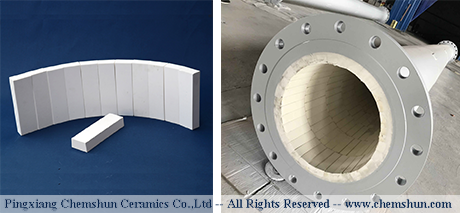

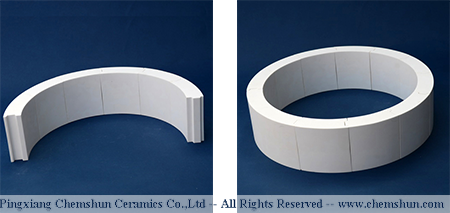

      Chemshun offer taper tile liners, curved tile liners and wear ceramic pipe liner for pipe system ,ceramic lined in pipe helps steel pipe shell not to be damanged by conveying materials
    • E-Mail:

    Al2O3 92% 95% Ceramic Lined Pipe

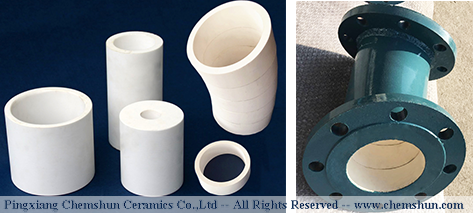

    Ceramic Lined Pipe by ceramic tube, ceramic pipe tile liner. hex tile mat


    Chemshun offer taper tile liners, curved tile liners and wear ceramic pipe liner for pipe system ,ceramic lined pipe helps steel pipe shell not to be damanged by conveying materials. which reduce production cost and prolong steel pipe shell usage life

    Chemshun has technical team and installation team who can help the client to choose the suitable wear resistant ceramic products ,and also we have the ability to design and make the CAD drawings according to the client’s wear application.

    Chemshun normal sizes : (Unit: mm )

    Product

    ID

    OD

    Thickness

    Length

    R

    Degree

    Straight Tube

    76

    106

    15

    150-250

    /

    /

    Straight Tube

    100

    140

    20

    305

    /

    /

    Straight Tube

    150

    185

    17.5

    150-250

    /

    /

    Straight Tube

    152

    182

    15

    150-250

    /

    /

    Straight Tube

    200

    240

    20

    305

    /

    /

    Bend

    76

    106

    15

    /

    400

    7.5

    Bend

    101

    131

    15

    /

    500

    5

    Bend

    150

    185

    17.5

    /

    1500

    3

    Bend

    151

    181

    15

    /

    750

    7.5

    Chemshun Ceramic pipe sizes range : 10~500 mm

    Ceramic lined pipe application :

    Industry

    Equipment

    Coal fired power plants

    Fly ash pipework

    Pulverized coal pipework


    Dust collection pipework

    Separators

    Cement plants

    Pneumatic conveying pipework

    Slurry pipework

    Steel plants

    Slurry pipework

    Pneumatic conveying pipework


    Dust removal pipe at the end of machine


    Chemical industry

    Dust removal pipe and elbow

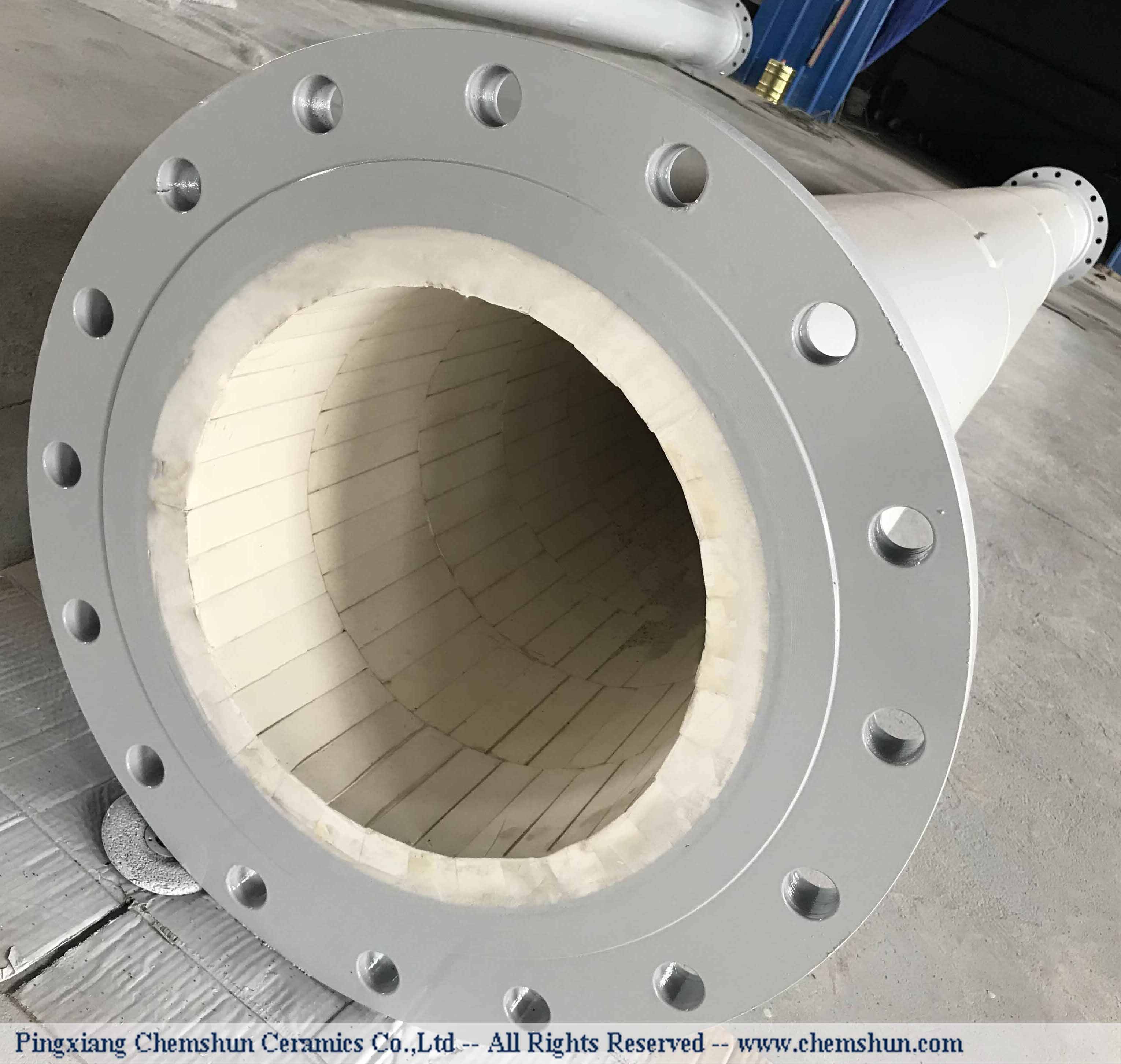

    Chemshun Ceramics tube lined.jpg

    Export:

    Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.


    Product Technical Data (1:wear resistant ceramic)

    Product PDF Brochure Download


    Chemshun Ceramics also recommends these other Ceramics lined equipment:


    Chute Liner

    Stock Bin

    Coking Plant

    Ceramic Lined Pipe

    Alumina ceramics lined hopper
