Square Ceramic Rubber Component

Wear resistant rubber ceramic liners are used to offer higher wear and impact protection.

Ceramic rubber composite linerFeatures:

> High wear and abrasion resistance.

> Long wear life, low maintenance and downtime.

> Significant noise reduction

> Available in a wide variety of shapes and sizes

> Corrosion resistant

Wear resistant rubber ceramic liners are used to offer higher wear and impact protection.

1. combine energy absorbing rubber and excellent abrasion resistant high alumina ceramic, suitable for high wear and impact applications.

2. custom shape and size to meest your specific requirements, standard liners and non-standard ones are all available.

3. complete wear and abrasion solutions

4. manufacturer with rich experience, good bond between rubber and ceramic, ceramics stay in place until completely worn.

5. wide range of rubber ceramic wear plates to meet your different requirements.

Product Description:

Wear Resistant Ceramic Rubber Composite Liner ( Rubber Ceramic Panels ) is made by a combination of wear resistantalumina ceramics(cylinders ,hexagon , plates) vulcanized in resistant rubber base, some rubber plates can selectively with steel backing.

Thealumina ceramicliner provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics. Rubber also helps to substantially reduce the vibrations, sounds, and the impact shock generated from impacting rocks.

As excellent impact and wear resistant material,The Rubber ceramic liners is suitable for feeders, chutes, bins, transfer points, in conveyor systems, screen feed plates, mill discharge chutes, bunker etc. The major applicable industries are Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces.

Major benefits of Alumina Ceramic Liner Vulcanized Into Rubber Backing (alumina ceramic rubber wear plate):

> Installation easily by welding bolt

> The combination is ideal for sliding/impact abrasions

> Excellent sound insulation

High Alumina Ceramic:

>Aluminium Oxide: al2o3>92%

>Specific gravity of ceramic 3.6 g/cm3

>Hardness(Moh's) > 9 t

Applications of rubber ceramic chute ceramic liner:

>conveyor chutes

>reflectors and impact plate

>bins, hoppers

>conveyor skirt liners

>stackers and reclaimers

Chemshun Standard Size :

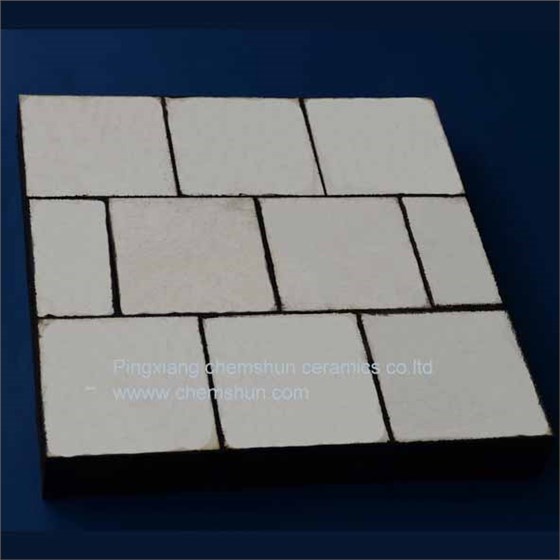

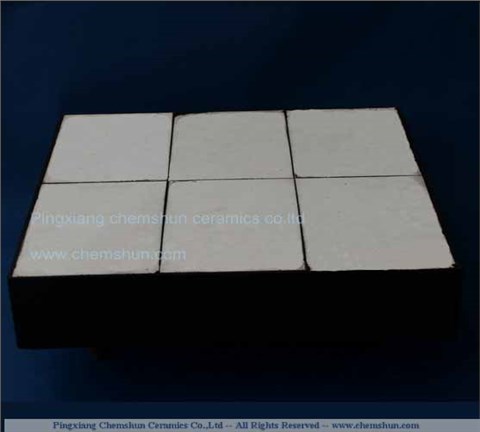

Ceramic shape vulcanized on the rubber :

Ceramic hex.tile, ceramic square tile, ceramic bricks are available from 10x 10 mm to 100 x 150 mm; thickness from 2 mm to 50 mm.

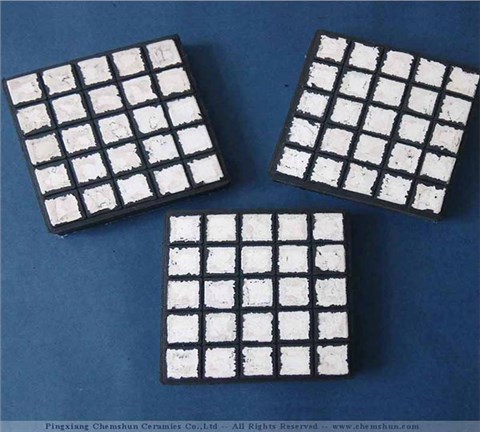

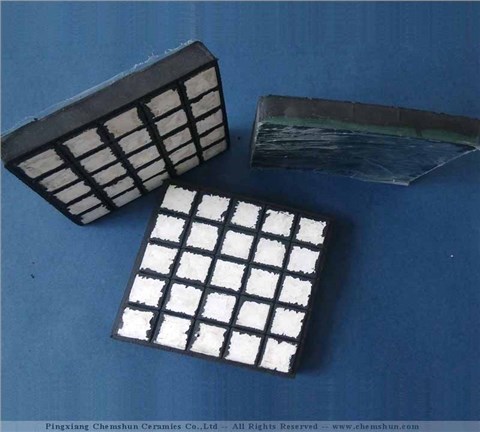

Chemshun popular wear ceramic rubber panel including: Panel With Dimple Ceramic; Panel With Hex. Ceramic; Panel With Cylinder Ceramic.

Product Structure

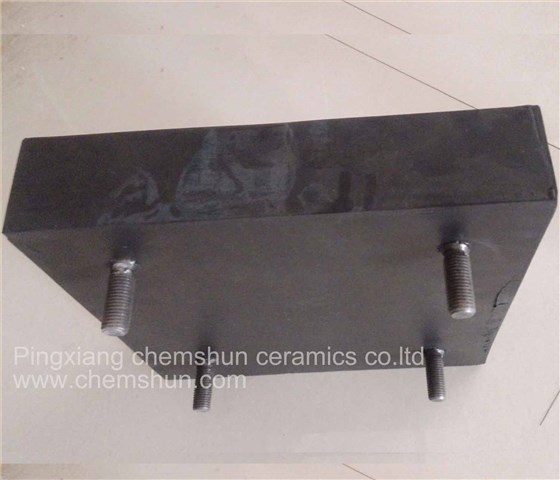

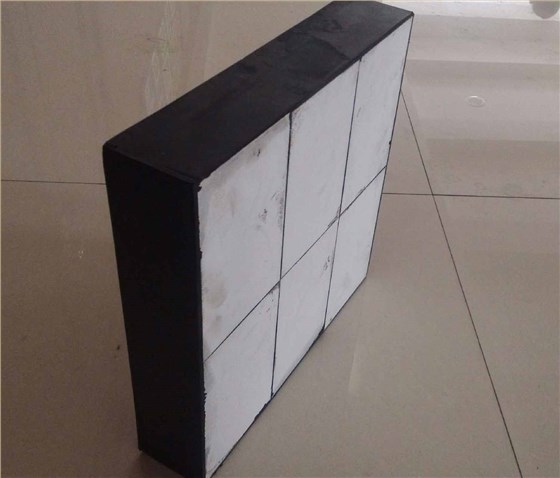

Thewear resistance ceramicrubber wear panel usuanal including: metal+rubber+ceramic / rubber+ceramic, and the surface is plain surface or spherical surface. The steel bolt also available upon application requirement.

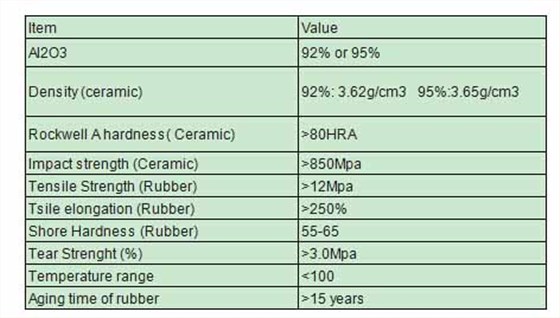

The property of vulcanized ceramics

Service:

Any requirment about chemshun Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels,Wear ceramic linerplease feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781

Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.

Product Technical Data（1：wear resistant ceramic)
