Mining Zirconia Ceramic Grinding Beads
Chemshun Ceramics grinding media for mining is small size ceramic balls or ceramic beads , used in high intensity stirred mills for fine and ultra fine grinding, The ceramic grinding media with different composition and size , and good feature of high impact resistance , The property of inert and no pollution , the media can replace the traditional steel and chrome steel grinding media for applications where downstream processes are sensitive to surface chemistry and also could avoid to the generation of slimes which combined with those traditional media’s angular shape and high wear rates.
Item | Main | Diameter | Density | Application Suggestion |
(mm) | (g/cm3) | |||

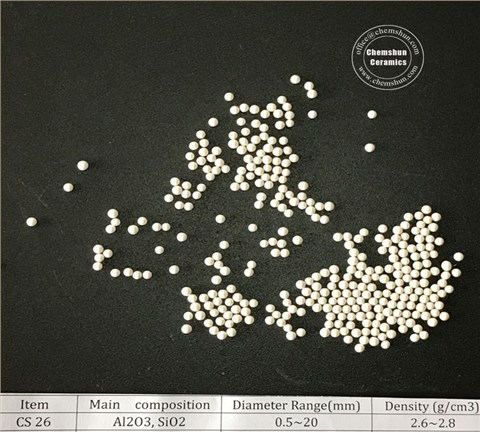

CS-26 | Al2O3,SiO2 | 0.5~20 | 2.6~2.8 | It’s suitable for the stirred mill such as Metso’s SMD and fine milling process of soft materials with low slurry density. |
CS-32 | Al2O3, SiO2 ZrO2 | 0.5~20 | 3.2~3.3 | It’s suitable for the stirred mill such as Metso’s SMD and milling the hard minerals. |

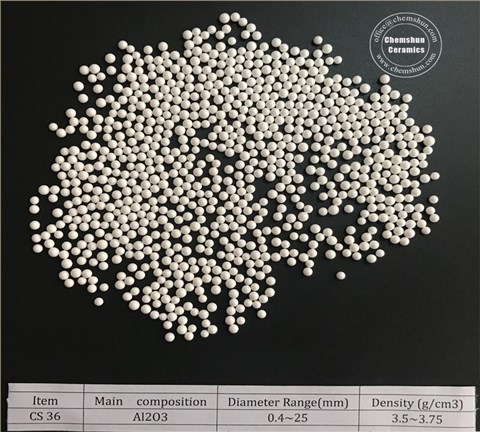

CS-36 | Al2O3 | 0.4~25 | 3.5~3.75 | It suitable for the Nano-size material grinding. |

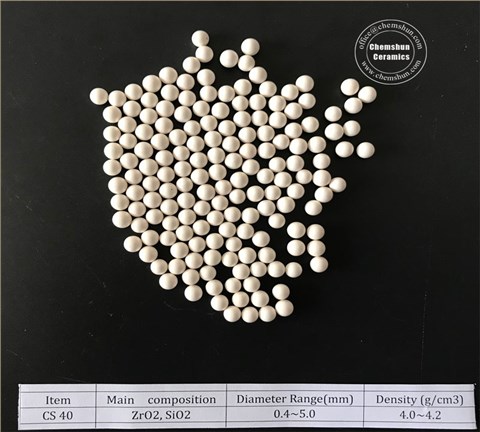

CS-40 | ZrO2,SiO2 | 0.4~5.0 | 4.0~4.2 | |

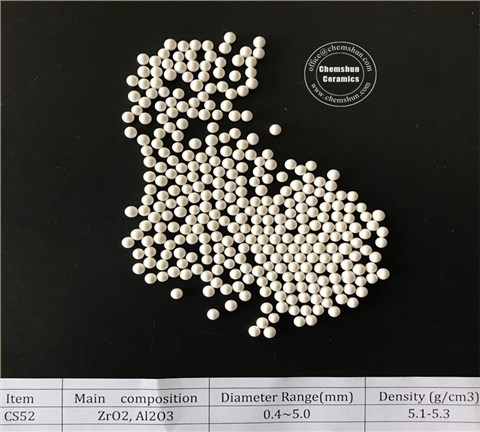

CS-52 | ZrO2,Al2O3 | 0.4~5.0 | 5.1-5.3 | It suitable for the hard materials’s superfine mills with high speed (up to 14m/S) and high energy input. For example: Outotec’s HIG mill. Flsmidth VXP. |

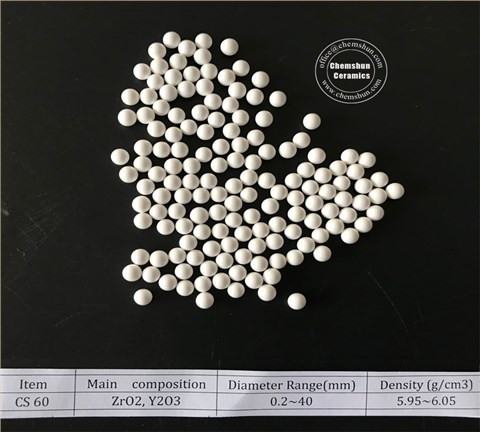

CS-60 | ZrO2,Y2O3 | 0.2~40 | 5.95~6.05 | 1.Chemical materials,paint,printing,ink,pigment. 2.Advanced ceramics pastes or powder. 3.Electronic pastes: gold platinum, silver,cuprum, nickel. 4.Food stuff,pharmaceuticals,cosmetics. |

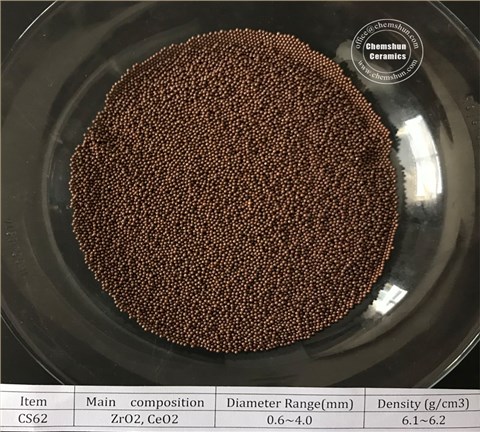

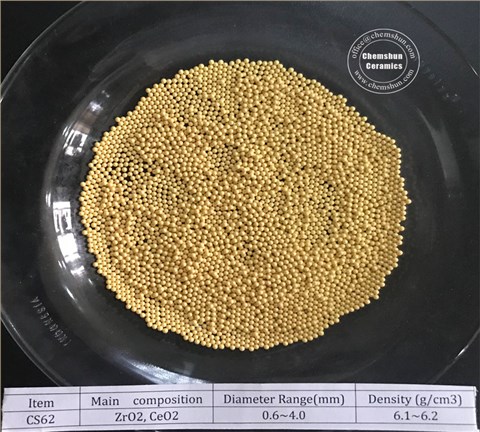

CS-62 | ZrO2,CeO2 | 0.6~4.0 | 6.1~6.2 |
Remark: CS-26, CS-32, CS-36, CS-40, CS-52 are suitable for the industries of:
1.Metallic minerals: copper, silver, nickel, Zinc
2.Non-metallic minerals: Kaolin clay, Calcium carbonate, Zirconium Silicate .
3. Coating, paint, ink etc.
Package :
1.1000kg/jumbo bag.
2.25kg/bag, small bags put into jumbo bag.
3.CS-52, CS-60, CS-62 by plastic drums, then drums fasten on pallet.
