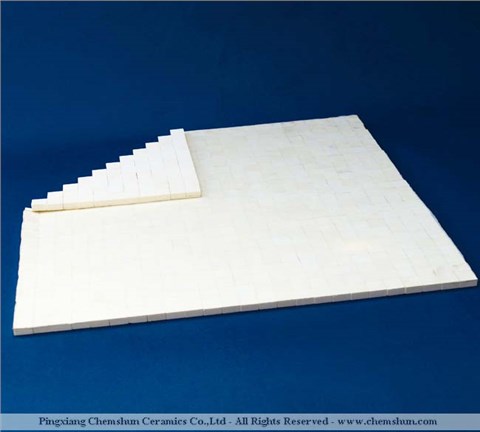

Square Ceramic Lining Tile Sheet
Due to flexible sizes and plane, the square ceramic lining tile sheet is popularly applied for roller conveyor, chute and other equipment with special angle, size, radian.

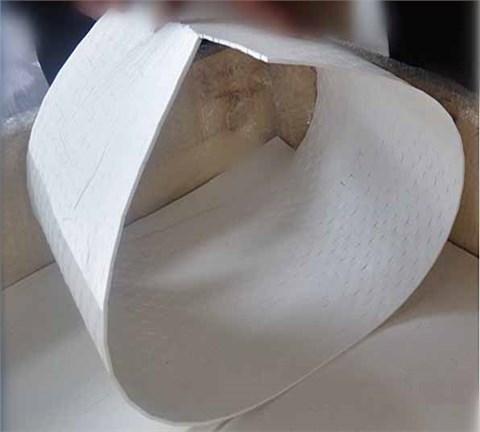

Ceramic lining tile sheet is consists of small square tile glued on acetate silk, nylon mash, paper or other special media. These wear-resistant alumina ceramic tile mats have the characters of thin thickness, low weight, flexibility which is ideal in applications where weight and space are limiting factors. These tile mats are easily installed by epoxy resin adhesive.
Advantages:
Much flexible and easy installation by epoxy resin adhesive, ideal for concave and convex surfaces face where standard tile will not readily fit.
Chemshun Wear Ceramic Lining Sheet application:
Chemshun Ceramic Lining Sheet sizes and property :
| Properties | CHEMSHUN 92 | CHEMSHUN95 |
| Al2O3 (%) | 92 | 95 |
| Density (g/cm3) | 3.6 | 3.65 |
| Moh's HardnessGrade | 9 | 9 |
| Products | Size in mm (L*W*T) / (S*T) | |
| ceramic square tile | 10*10*2~10, 17.5*17.5*2~15 20*20*2~20, 33*33*5~25 etc. | |
| ceramic hexagonal tile | 6*3~6, 11*3~25, 12*3~25, 19.05*3~25 | |
| ceramic block | 32*32*32, 40*40*40 | |
| hex/square tile mats | 150*150, 300*300, 500*500 | |
| materials of mats | paper, nylon, mesh,acetate cloth etc. | |

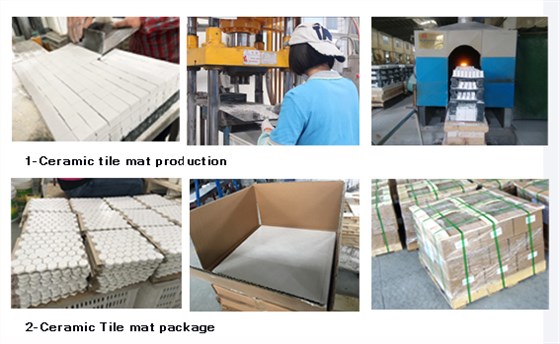

Chemshun ceramic tile matproduction and package:

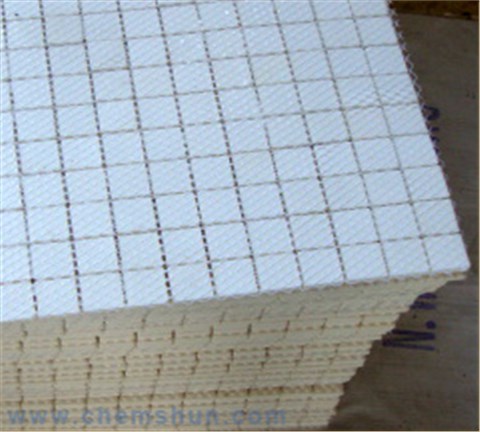

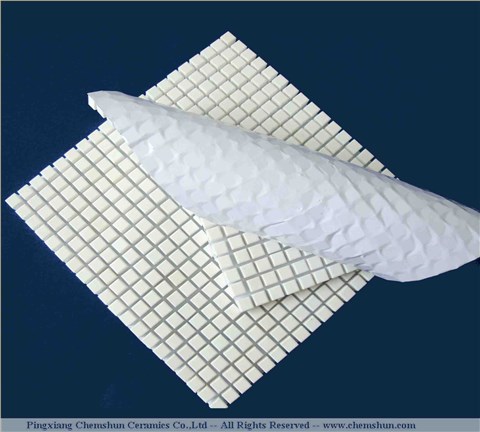

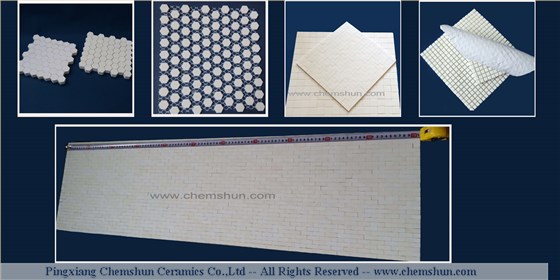

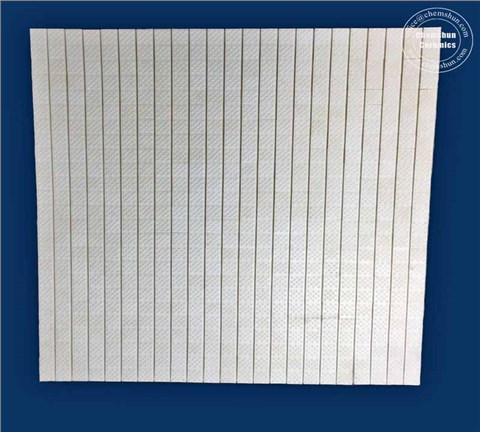

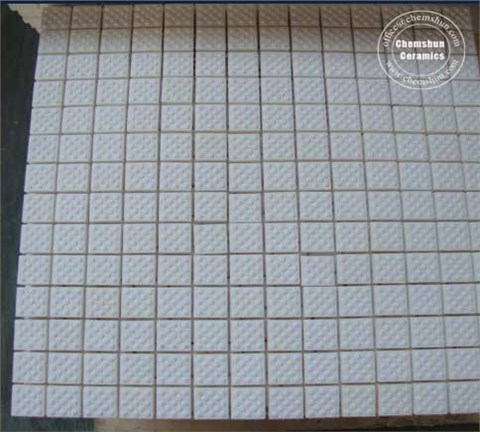

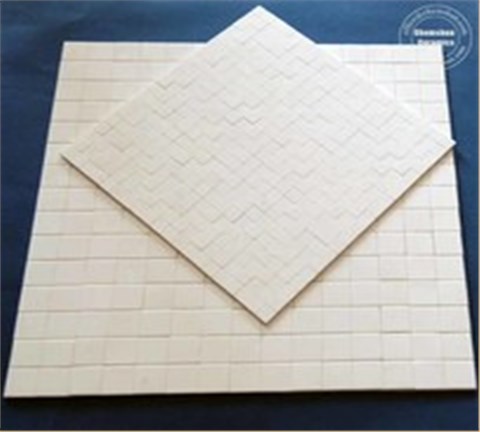

Chemshun wear ceramic lining sheet types :
Product Technical Data（1： wear resistant ceramic)
