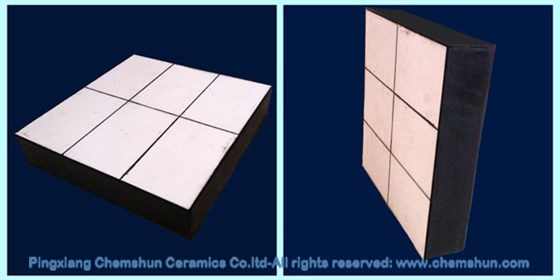

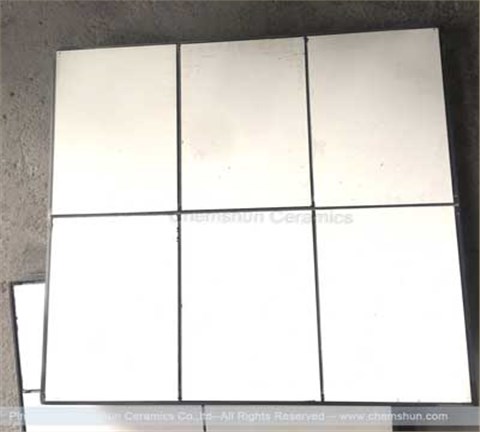

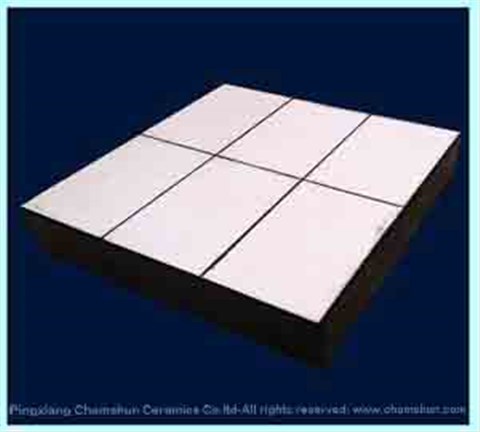

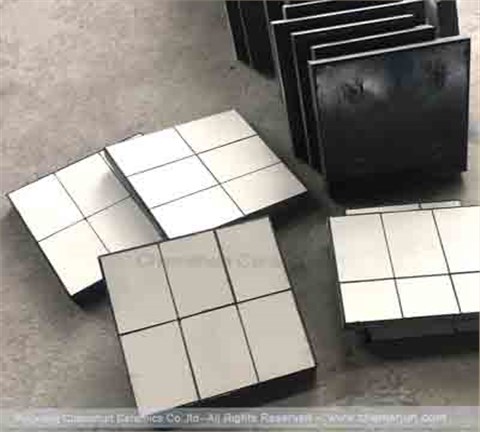

ZTA Ceramic Rubber Sheet
ZTA ceramic rubber sheet is combination of ZTA ceramics and rubber sheet.steel plate. It is more wear resistance than alumina ceramics wear liner by adding purity zirconia. Chemshun Ceramics can supply ZTA ceramic plate, cylinder, balls, hexagonal tile,cube for vulcanization .
ZTA Ceramic Rubber Wear Liner Technical Data Sheet
| Ceramic Property | |
| Appearance | White, Smooth |
| Alumina Content | 22% ZrO2+ 77%Al2O3 |
| Density (g/cm3) | 4.20 |
| Vickers Hardness (HV10) | 1300 |
| Fracture Toughness (Mpa.m1/2) | 5-6 |
| Porosity (%) | 0 |
| Ceramic Shape | Ceramic Tile/ Cubes/Cylinder/Hex tile |
| Rubber Property | |
| Composition | Nature rubber + SBR |
| Shore hardness | 60±5 |
| Tensile strength (Mpa) | 25 |
| Tensile elongation rate (%) | >400% |
| Tear strength (%) | 30 |
| Bonding strength between rubber and ceramics (Mpa) | 4 |
| Panel Size | |
| 300*300mm ,150*300mm | 200*200mm, 500*500mm |
| 450*300mm , 530*450mm | Customized size available |
