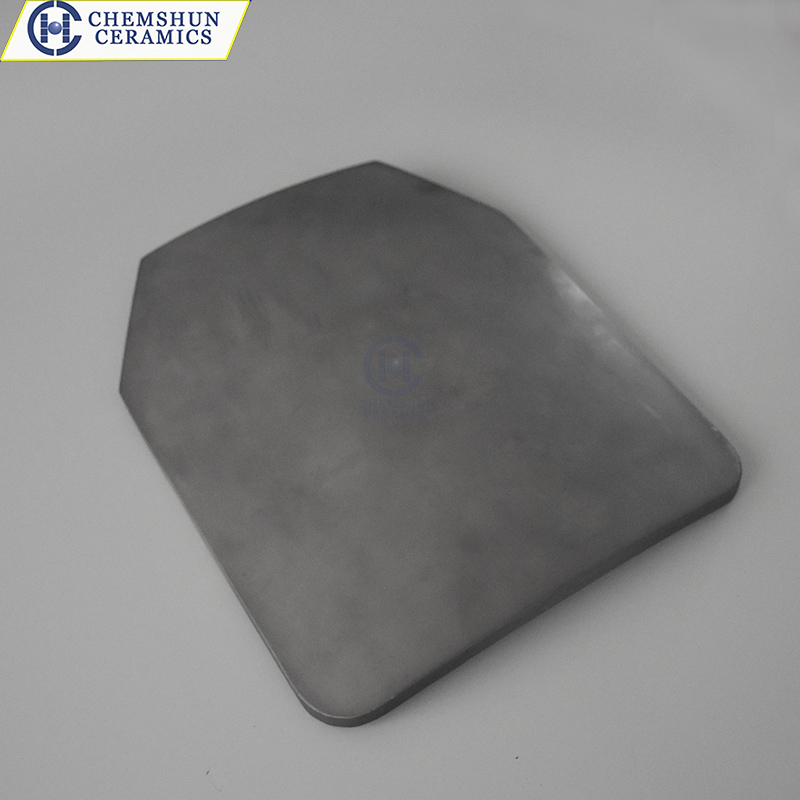

Product Name：Silicon Carbide Ceramic Bulletproof Armor
- Product Category：
- Product Details：
In recent years, silicon carbide ceramic bulletproof armor has been more and more widely used in the field of armor protection, such as individual equipment, army armor weapon platforms, armed helicopters, police and civilian special vehicles. - E-Mail:
-
With the advantages of excellent mechanical, thermal, chemical and physical properties, pressureless sintered silicon carbide ceramic has more development space in the field of armor protection. In recent years, silicon carbide ceramic bulletproof armor has been more and more widely used in the field of armor protection, such as individual equipment, army armor weapon platforms, armed helicopters, police and civilian special vehicles.
Feature
High strength
High hardness
Moderate density
Corrosion resistance
High wear resistance
Radian smoothing
Advantage
The structure is stable, not easily deformed
It can reduce the amor load due to the low density.
Delivery time is fast
Technical Data
| Properties | Units | Value |
| SiC | wt% | ≥99.0 |
| Density | g/cm3 | 3.10~3.15 |
| Modulus of elasticity | Gpa | 410 |
| Hardness HV | kg/mm2 | 2600 |
| Bending strength | Mpa | ≥400 |
| Compressive strength | Mpa | ≥2000 |

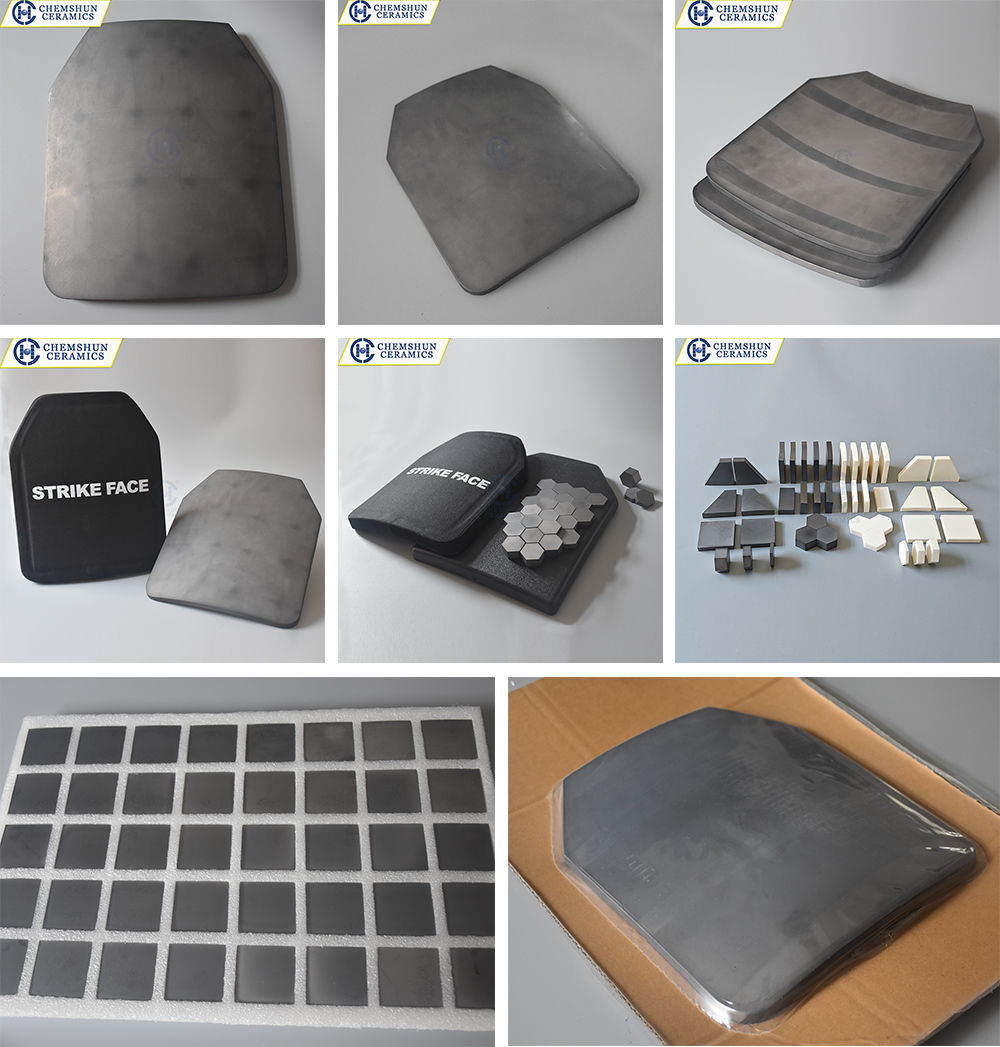

Dimension
| Type | Unit | Size |
| Square Tile | mm | 50x50xT5-12 |
| Hexagonal Tile | mm | 30 |
| Assembled Plate | mm | 200x250xT5-12 |
| Assembled Plate | mm | 250x300xT5-12 |
| Monolithic one-piece ceramic structure | mm | 250x300xT5-12 |
Other specifications can be customized by customers
