Product Name:Ceramic Filter tube
- Product Category:
- Product Details:
- E-Mail:

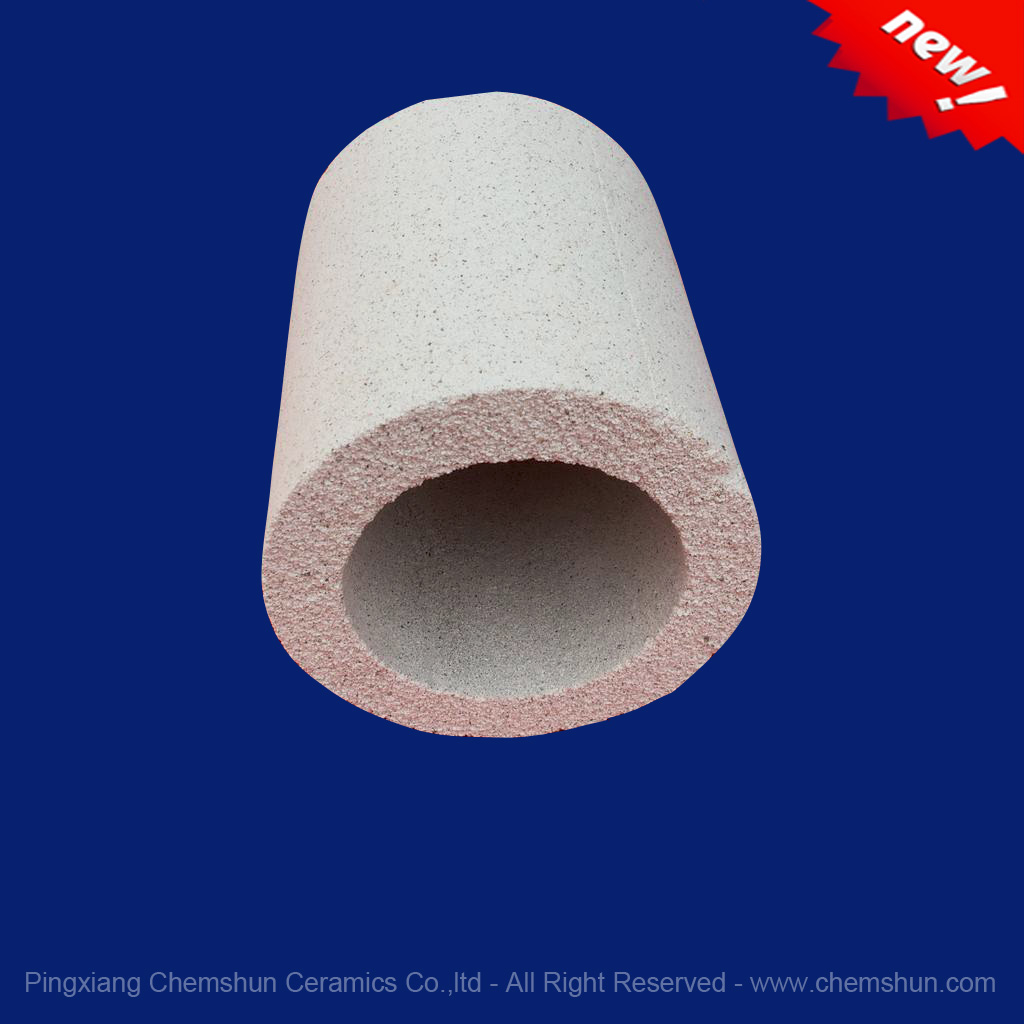

Ceramic Filter tube
The ceramic filter tube is composed of many uniform micropores. When the fluid passes through these tiny holes, suspended substances, colloidal particles, and macromolecular organic matter are trapped on the surface of the filter medium. The fluid passes through the microporous ceramic filter tube to produce various physical effects, achieving mechanical screening purification or diffusion, fluidization, etc. efficacy
Product Features :
1: Good heat resistance, no thermal deformation, and the effect is unchanged at 500 ℃.
2: Excellent cold resistance and freeze resistance.
3: The micropores are evenly distributed, and various pore sizes below 500 μm can be formed according to user requirements.
4: Due to the high rigidity, it will not cause shape change and pore deformation under the action of fluid pressure, so that it is easy to remove slag and regeneration during product application.
5: There is no dissolved substance in the liquid, so the liquid will not be subject to secondary pollution. Main performance indicators of the product
Physical Property :
Item | Value | Item | Value |
Test weight(kg/m3) | 1480 | Flexural strength(Mpa) | 5.3 |
Aperture(um) | 10-500 | Acid resistance(%) | ≥98 |
Porosity(%) | 30-50 | Alkali resistance(%) | ≥82 |
Permeability(kg/m2.h) | 15000 | Moh's hardness
| 7 |
Air permeability(m3/m2.h) | 1.8-5.0 | Thermal stability(℃) | 800 |
Compressive strength(MPa) | 13-15 | Water absorption(%) | 23.3 |
Scope of application:
Microporous ceramic filter tubes are widely used in solid-liquid separation, gas-liquid separation, powder transportation, oil-water separation, and winemaking in the environmental protection "three wastes" management of industrial enterprises such as petroleum, chemical, metallurgy, thermoelectricity, cement, papermaking In industrial separation, air filtration, circulating water filtration and other devices, it is particularly suitable for the filtration of boiler dust removal wastewater and slag flushing water.
Size :
Size ( Tolerance±2mm ) | |||
OD | ID | Length | Thickness |
(mm) | (mm) | (mm) | (mm) |
50 | 30 | 100 | 10 |
60 | 40 | 500 | 10 |
60 | 40 | 1000 | 10 |
100 | 60 | 1000 | 20 |
200 | 140 | 1000 | 30 |
300 | 200 | 1000 | 50 |
