Product Name:Al2O3 90% Inert Balls
- Product Category:
- Product Details:
Chemshun Ceramic offer alumina inert balls is low silica and high strength - E-Mail:

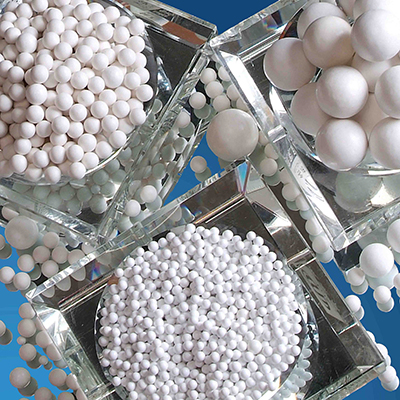

Alumina Inert Balls
1: Descripion :
Alumina inert Balls are often used in catalyst bed support .widely used in petrochemical industry, chemical industry, fertilizer industry, natural gas industry and environment protection etc. With functions as covering and supporting materials for catalyst in reactors and packing for towers. The main role of inert alumina ball is increasing the distribution of liquid and gas, holding and protecting the activated catalyst with low strength.
2. Chemical Analysis :
Al2O3 | SiO2 | Fe2O3 | TiO2 | MgO+Cao | K2O+Na2O | Leachable Fe2O3 |
>90% | ≤7.0% | <1.0% | <0.50% | <2.0% | <2.0% | <0.1% |
3. Physical Analysis
Items | Proportion | Items | Proportion |
Particle Density (g/cm3) | ≥3.1 | Package density(g/cm3) | 1.60-1.80 |
Water Absorption (%) | ≤5 | Operating Temperature (℃) | ≤1500 |
Moh’s Hardness (Scale) | 9 |
4. The Standard Specification
Diameter | Diameter range (mm) | Crushing Strength (kg/pic) |
1/8″(3mm) | 2-4 | >40 |
1/4″(6mm) | 5-7 | >100 |
3/8″(10mm) | 9-11 | >150 |
1/2″(13mm) | 12-14 | >500 |
5/8:(15mm) | 14-17 | >700 |
3/4″(19mm) | 17-21 | >900 |
1″(25mm) | 23-27 | >1300 |
2″(50mm) | 48-52 | >2100 |
5: Package Pictures
Product Technical Data (3:catalyst carrier series)
