Product Name:Zirconia balls (ZrO2 80%)
- Product Category:
- Product Details:
- E-Mail:

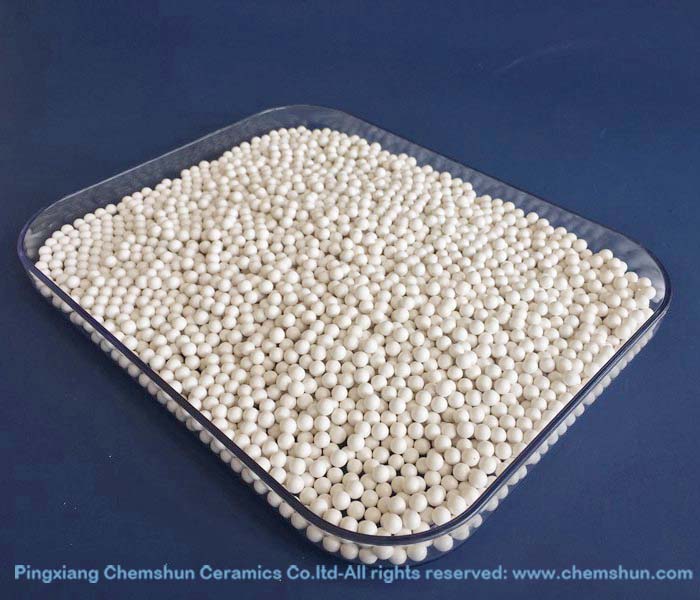

Zirconium balls (ZrO2 80%)
Zirconia Toughened Alumina (ZTA) grinding media is a new ceramic grinding media with features of ultra-abrasive, high toughness, high density, high alumina hardness and corrosion resistance. Chemshun zirconia balls are moderate prices, high density and excellent wear resistance.
Techinal date of Chemshun zirconia balls:
Physical Property | Unit | Value |
Compsision | wt% | 20~80% ZrO2 |
80~20% A2O3 | ||
Packed Density | Kg/L | 2.6~3.3(Φ7mm) |
Specific Density | g/cm3 | 4.1~5.5 |
Hardness(HV) | GPa | >8.5 |
Elastic modulus | GPa | 200 |
Thermal Conductivity | W/m.K | 3 |
Crushing Load | KN | ≥8 (Φ7mm) |
Fracture Toughness | MPam1-2 | 6.7 |
Grain size | µm | ≤0.8 |
Thermal expansion | 10x10-6/ °C(20-400) | 7 |
Coeffcient(20-400 °C) |
Available size of Chemshun zirconia balls:
Ball Size |
φ0.1-0.3, φ0.6-φ0.8, φ1-φ5 , φ7, φ10, φ12, φ15, φ20. Customized size available |
Application : |
Non-metallic minerals, paints, inks, paper, coatings, electronic materials, magnetic materia ls,medicine, etc. |
