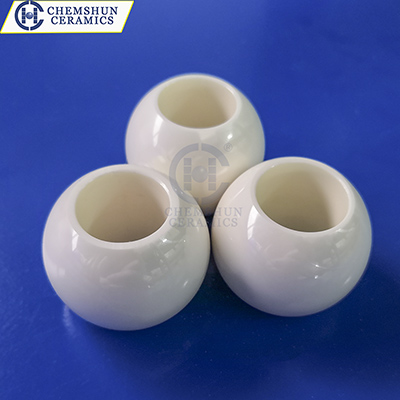

Product Name：Zirconia Ceramic Structural Parts
- Product Category：
- Product Details：
- E-Mail:
-
Chemshun takes the world's advanced ceramic technology and process as the innovation goal, adopts professional equipment and testing instruments, strictly controls the product quality, and provides Y-ZR, A-ZR, FZTA and silicon carbide and other high strength, wear resistance, corrosion resistance, high temperature resistance engineering ceramic parts to the domestic and foreign markets.Among them, A-ZR ceramic material is widely used in various industrial fields with its excellent cost performance and reliable quality.
Main Features:
High strength
Corrosion resistant
High wear resistance, good self lubricity
Application fields:
Suitable for valve core, mold, cutting tool, bearing, shaft, sealing ring, liner, etc.
Performance parameters of different zirconia ceramic materials:
A-ZR | Y-ZR | FZTA | |
ZrO2 Content | 90% | 94.5% | 40% |
Density g/cm³ | >5.9 | >6.0 | >4.8 |
Hardness (HRA) | >89 | >89 | >89 |
Bending Strength (MPa) | >1100 | >1000 | >600 |
Modulus of Elasticity (GPa) | 230 | 200 | 180 |
Coefficient of Thermal Conductivity (W/Wm.k) | 4 | 3 | 6 |
Fracture Toughness (MPa.m½) | 10 | 8 | 3.5 |
The Corrosion Resistance | A+ | A | A+ |
High Temperature Wear Resistance | A+ | A | A |
Resistance to Wear at Normal Temperature | A+ | A+ | A |
Fatigue Resistance | A+ | A | A+ |
