Product Name:ZTA320 ZTA380 ZTA450 Ceramic Beads
- Product Category:
- Product Details:

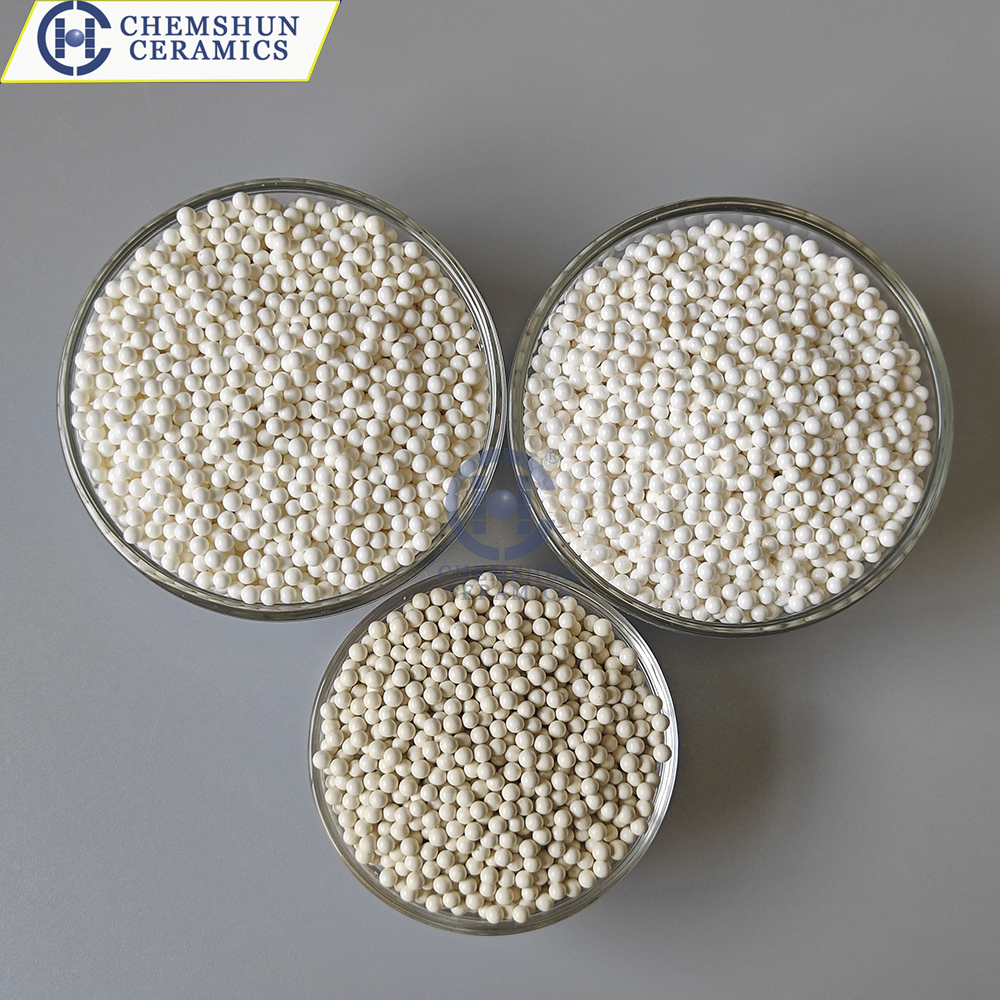

ZTA Ceramic Balls ZTA Ceramic Beads is a composite Ceramic Ball, which are made from Aluminium Oxide with a certain percentage content of Zirconium Oxide. - E-Mail:
According to the market and actual grinding requirement, Chemshun developed a series of ZTA Ceramic Grinding Balls, such as ZTA320,ZTA380,ZTA450, from the low density grinding media to middle density grinding ball and High Density Grinding Ceramic Medias.
Chemshun ZTA Ceramic Balls and Beads with excellent mechanical properties, wear and compression resistance and thermal shocks resistance, Good corrosion resistance in almost all diluted and concentrated solutions. It can be used in different mills such as MessoVertimill, Metso SMD, VSPMill, Vollrath, Basket Mill etc.
Application:
Chemshun ZTA Ceramic Balls used all kind of raw material fine grinding and ulrafine grinding, contamination free milling. For example:Minerals, Argo Chemicals, Magnetic, Piezoelectric, Dielectric, Technical ceramics, Refractory Materials, Coating, Pigment, Paints, Printing, Ink, Paper Industry.
Technical Data:
ZTA320 | ZTA380 | ZTA450 | |
Type | Low Density Beads | Middle Density Bead | High Density Bead |
ZrO2(%) | 10 | 15 | 60 |
Mohs hardness | 8 | 8 | 8 |
Water absorption | <0.01 | <0.01 | <0.01 |
Bulk density(g/cm3) | >3.20 | >3.80 | >4.50 |
Size | 0.5-20mm | 0.5-20mm | 0.5-20mm |
Color | White | White | White |
Delivery Term:
Stock cargo order: within 7days.
When stock cargo, New Producing days 10-15 days at slack season, 20-30 days at peak season.
Package term:
1. 25kg net in PP bag
2. Big bag of 500 or 1000kg net. Around 20-24MT/20' FCL.
If you hope to get a quick feedback, please send us these detail information, then our team will supply you a full and soon reply:1.Your application industry.
2. Your Grinding efficiency requirement.
3. Your target price.
4. Sample quantity, bulk order quantity.
5. If you need customized products, please send us the specific composition, size and drawings.
