Product Name:Wear Resistant Ceramic Elbow
- Product Category:
- Product Details:
Chemshun wear resistant alumina ceramic pipe liner protection conveying pipeline from abrasion damage. - E-Mail:

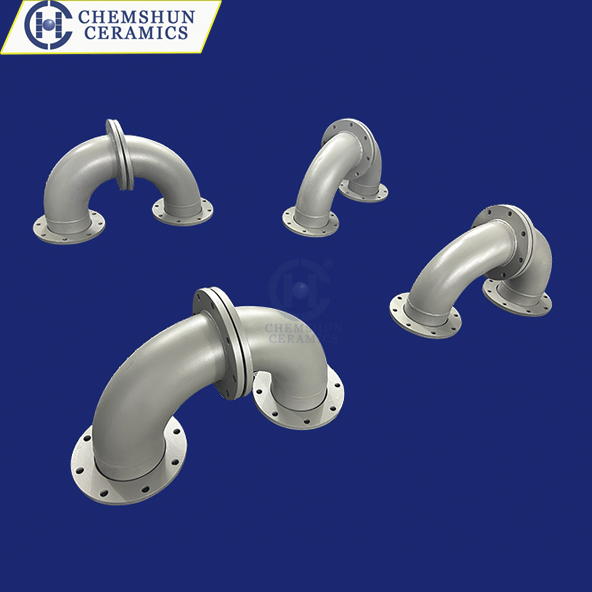

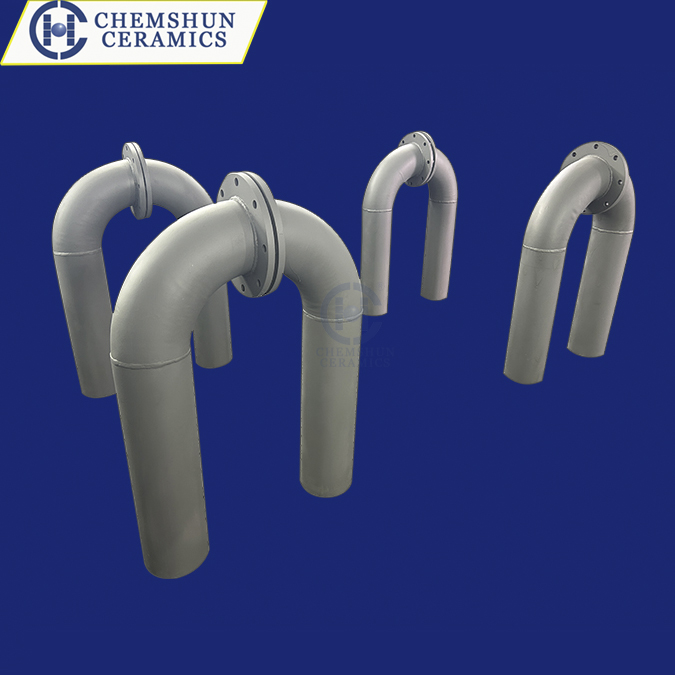

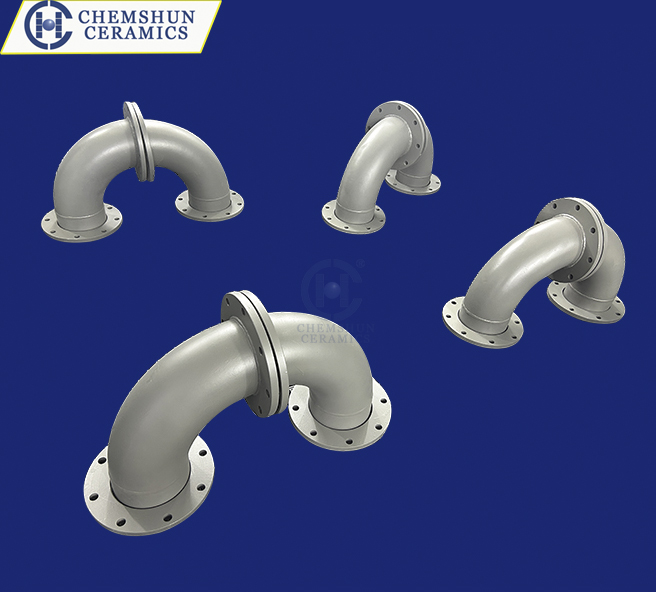

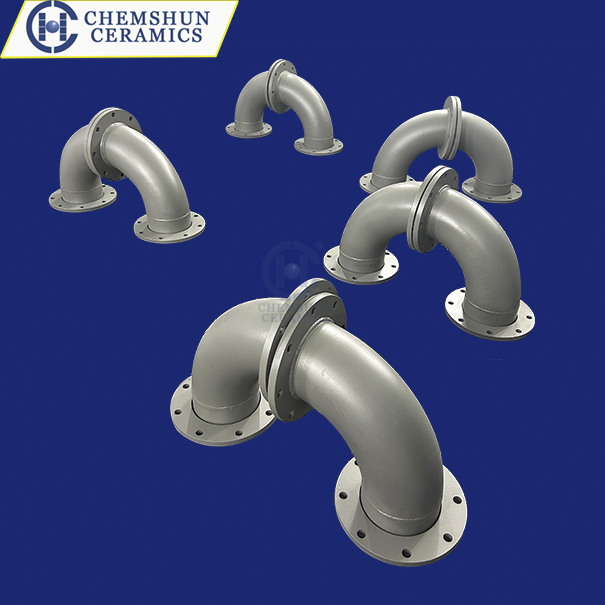

Chemshun Ceramic bend pipe also named ceramic cones is pressed by ISO method to form a solid ceramic pipe .this bend pipe has various dimensions for different fields of wearable conditions. Ceramic Bends or Ceramic Cones is characterized with excellent wear resistant property and long service life; smooth surface, low friction coefficient; resistant to most kinds of acid, alkali and salt; low thermal expansion coefficient and thermal conductivity, operating temperature can be up to 1500 cent-degree max, Ceramic cone typical application is lined in steel pipe with flange .which is used to protect steel pipe without acid and alkaline corrosion when conveying oil, slurry , gas, solid mineral materials .
Product advantage:
-- High hardness.
-- Superior abrasion.
-- Corrosion and chemical resistance.
-- Light weight.
-- Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.
-- Good fluidity : Smooth surface ensure the free flow of material without blocking.
Chumshun pipe size available
Chemshun pipe Sizes | |
ID: 10mm~500mm | Thickness and length according to customer’s needs |
more sizes and customized size acceptable |
Application industry:
-- Mining industry
-- Cement industry
-- Coal handling industry
-- Steel industry
-- Port industry
-- Power plant
Chemical Composition:
Al2O3 | SiO2 | CaO | MgO | Na2O |
92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
Physical properties:
Specific gravity (g/cc) | >3.60 |
Apparent porosity (%) | 0 |
Flexural Strength (20℃, Mpa) | 280 |
Compressive strength (20℃, Mpa) | 850 |
Rockwell hardness (HRA) | 80 |
Vickers hardness (hv) | 1050 |
Moh’s hardness (scale) | ≥9 |
Thermal Expansion (20-800℃, x10-6/℃) | 8 |
Crystal Size (μm) | 1.3~3.0 |
