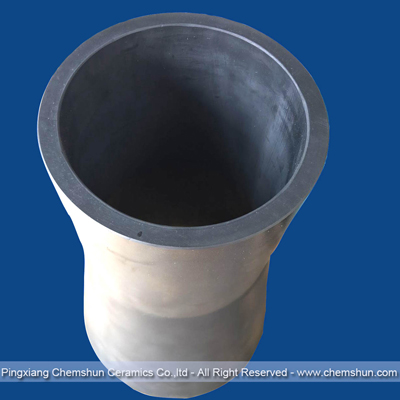

Product Name:SSIC Silicon Carbide Pipe Cone

Pressureless Sintering Silicon Carbide Cylone Pipe


1. Description of SSIC


Silicon Carbide was originally produced by a high temperature electro-chemical reaction of sand and carbon. Silicon carbide is an excellent abrasive and made into grinding wheels and other abrasive products. Today the material has been developed into a high quality technical grade ceramic with very good mechanical properties. It is used in abrasives, refractories, ceramics, and a large number of high-performance applications. Silicon Carbide can also be made an electrical conductor and has applications in resistance heating, flame ignite and electronic components.

2. Typical Characteristics:


1. High Hardness, Out Standing Wear Resistance
 2. High Strength Over A Wide Temperature Range
 3. Excellent Thermal Shock Resistance
 4. Excellent Oxidation Resistance
 5. Very Low Friction Coefficient
 6. Low Thermal Expansion and High Thermal Conductivity


3. Typical Applications

1. Mechanical Seal
 2. Heat Exchanger
 3. Bulletproof Plate
 4. Ball Vlave Parts
 5. Pump Components
 6. Semiconductor
 7. Metallurgical Engineering
 8. Fixed and Moving Turbine Components



4: Technical Data :


Properties


Units



SSiC

Bulk denstity     SiC


Vo1%

≥99



Bulk density

g/cm3

3.10-3.15

Apparent porosity

%

0.2

Modulus of rupture at 20℃

Mpa

400

Modulus of rupture at 1200℃

Mpa

650

Modulus of elasticity at 20℃

Gpa

410

Thermal Conductivity at 1200℃

w.m-1.k-1

55

Thermal expansion  at 1200℃

a×10-6/℃

4.0

Thermal shock resistance at 1200℃


Very good

Max.working temperature

1600


4.Package:
Export Carton, Wooden Box


5. Delivery:
Usually 21-30days for 20ton.
