Product Name:Hexagonal Ceramic Tile Mat

  • Product Category:
    • Product Details:
      Chemshun alumina ceramic Hexagonal Mat and square mosaic ceramic sheet as an excellent wear resistance materials and easy fixing method are popular accepted by the market.
    • E-Mail:

    Hexagonal Ceramic Tile Mat

    Chemshun alumina ceramic hexagonal tile mat as excellent wear resistant liner materials and easy fixing method are popular in the market.


    Alumina ceramic hexagonal tile mat introduction:

    Pingxiang Chemshun Ceramics co.,ltd as China alumina ceramics manufacturer/factory/wholesaler/distributor of alumina ceramic hexagonal tile mat, alumina ceramic square mosaic ceramic sheet. The alumina mosaic sheet is an excellent wear resistant ceramic material. Alumina ceramic hexagonal tile mat is widely used as wear liner for pulley lagging, rubber ceramic plate, rubber hose and kinds of irregular equipment. It can easily installation and fixing by expoxy resin glue.

    Alumina ceramic tile mat size:

    Hexagonal tile

    S12xT3mm, S12xT6mm,

     S12xT12mm, S12xT20mm


    Square tile

    10x10x2mm, 10x10x3mm,

    10x10x4mm, 10x10x8mm,

    17.5x17.5x3~10mm, 20x20x4mm,

     20x20x5mm, 20x20x6mm,

     20x20x8mm, 20x20x10mm


    Mat Size

    150X150mm, 300x300mm,

    500x500mm


    Sticked material

    Acetate Cloth, Nylon net, Paper

    Advantages of hexagonal tile mat:

    1) Small and flexable size. It can suitable most of irregular equipment.

    2) High alumina content and high hardness:
    Its rockwell hardness is HRA80-90 and the Moh's hardness is up to 9 grade with is only less than diamond. And its abrasion-resistant is more better than steel and stainless steel;

    3) Excellent abrasion resistance and impact resistance.

    4) Excellent corrosion resistance (resist the strong alkaline, strong acid slag and liquefied materials).

    5) Excellent heat resistance (up to 1500 ).

    6) Easily and quickly installation.

    7) Smooth surface can be reduce barrage and friction coefficient to prolong the device service life.

    8) Low density reduce the lined equipment weight and improve the equipment working effectiveness

    9) Light weight:
    Its density is 3.6-3.75g/cm3, it is only half weight of steel, and could reduce the load on equipment.

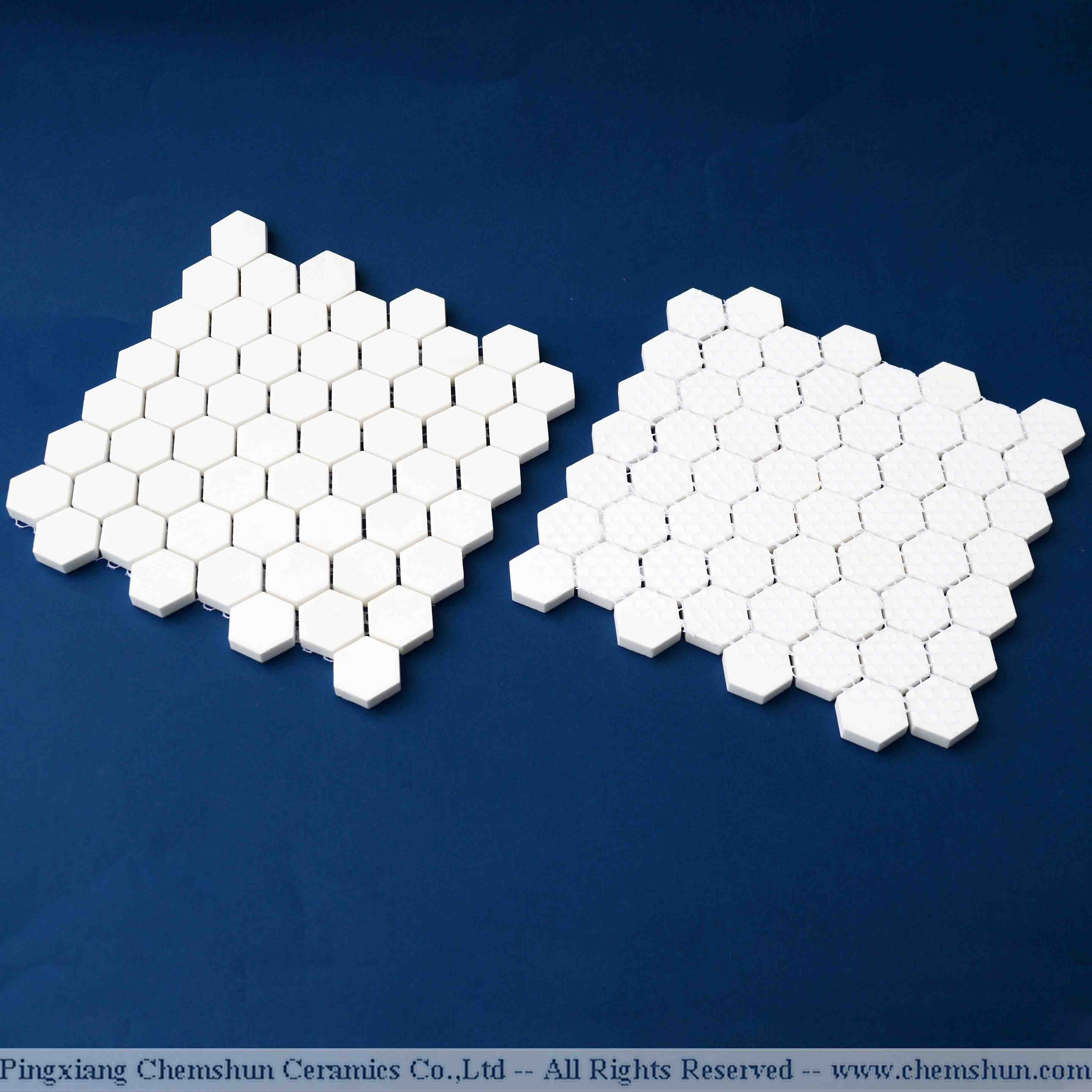

    Hexagonal alumina tile mat

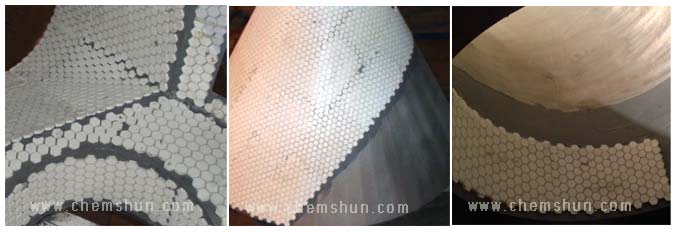

    Hexagonal ceramic tile as wear resistant liner for irregular equipment.

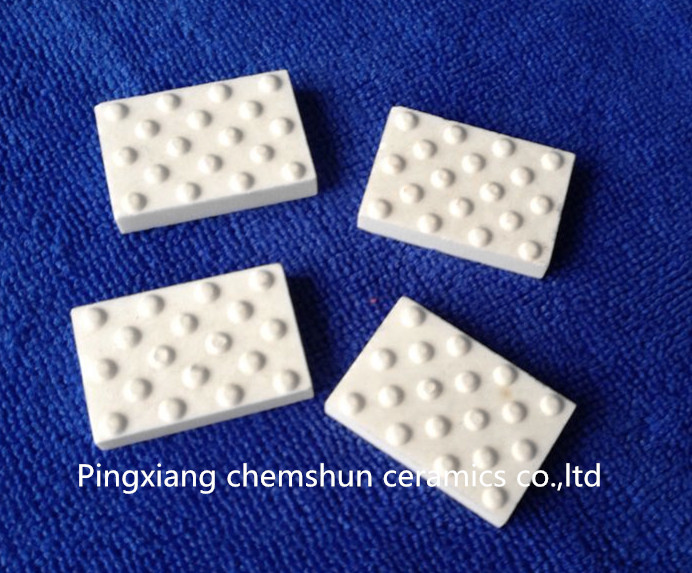

    Other pulley lagging tile: Alumina ceramic tile with salient point

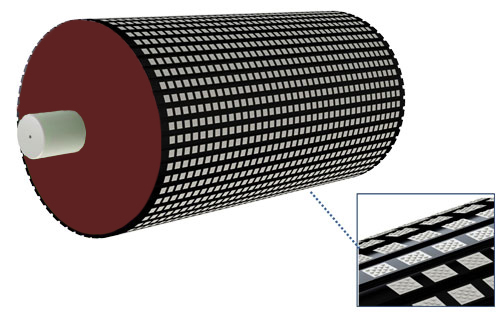

    Square tile and rubber composite liner as ceramic pulley lagging. Alumina-Nipple-Tile-Alumina-Dimple-Tile-Ceramic-Pulley-Lagging-Tile.jpg


    Application:
    > Used to construct ceramic rubber plate as wear-and-impact-resistant lining.

    > Used as Alumin ceramic materials on the industries of chemical, mining, metallurgical, cement etc.

    > Directly fixing on the equipment, easy control and application.

    > Used as component of ceramic bearing.

    > Used for ceramic pulley lagging.

    > Used for conveying engineering in mining industry.

    Alumina ceramic hexagonal tile and rubber composite plate

    Raw Material:
    The wear resistance alumina ceramic hexagonal tile mat, square mosaic ceramic tile sheet is made by the high purity, super fine and single narrow particle high-quality grain alumina powder, which is spray-dried processing, formed by cold isostatic pressing, firing on 1520 º C~1650 º C temperature. Subject to Al2O3 content difference, we have 92% or 95% abrasion resistance ceramics.

    Ceramic Properties:


    Properties
    CHEMSHUN92CHEMSHUN95
    Al2O3 content (%)9295
    Density  (g/cc)3.603.68
    ColorWhitePale lvory

    Water absorption

    (%)

    00

    Flexural strength

    (Mpa)

    280300

    Moh's Density

    Grade)

    99

    Rock well hardness

    (HRA)

    8086

    Vickers Hardness

    (HV10)

    10501190-1220

    Compressive strength

     (Mpa)

    850950-1000

    Thermal expansion coefficient

    (25-100) ℃ (1*10-6/


    7.68.3

    Maxium operation

    temperature

    12501250

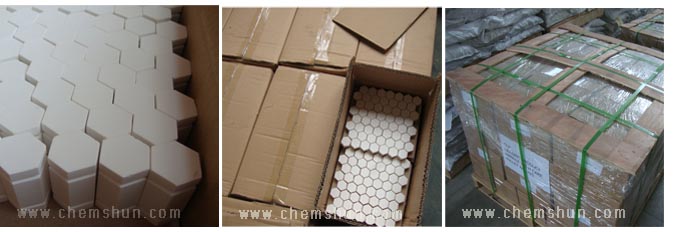

    hexagonal ceramic tile package.jpg

    Why choose Chemshun Alumina Ceramic Tile Mat


    Product Technical Data (1:wear resistant ceramic)

    Product PDF Brochure Download
