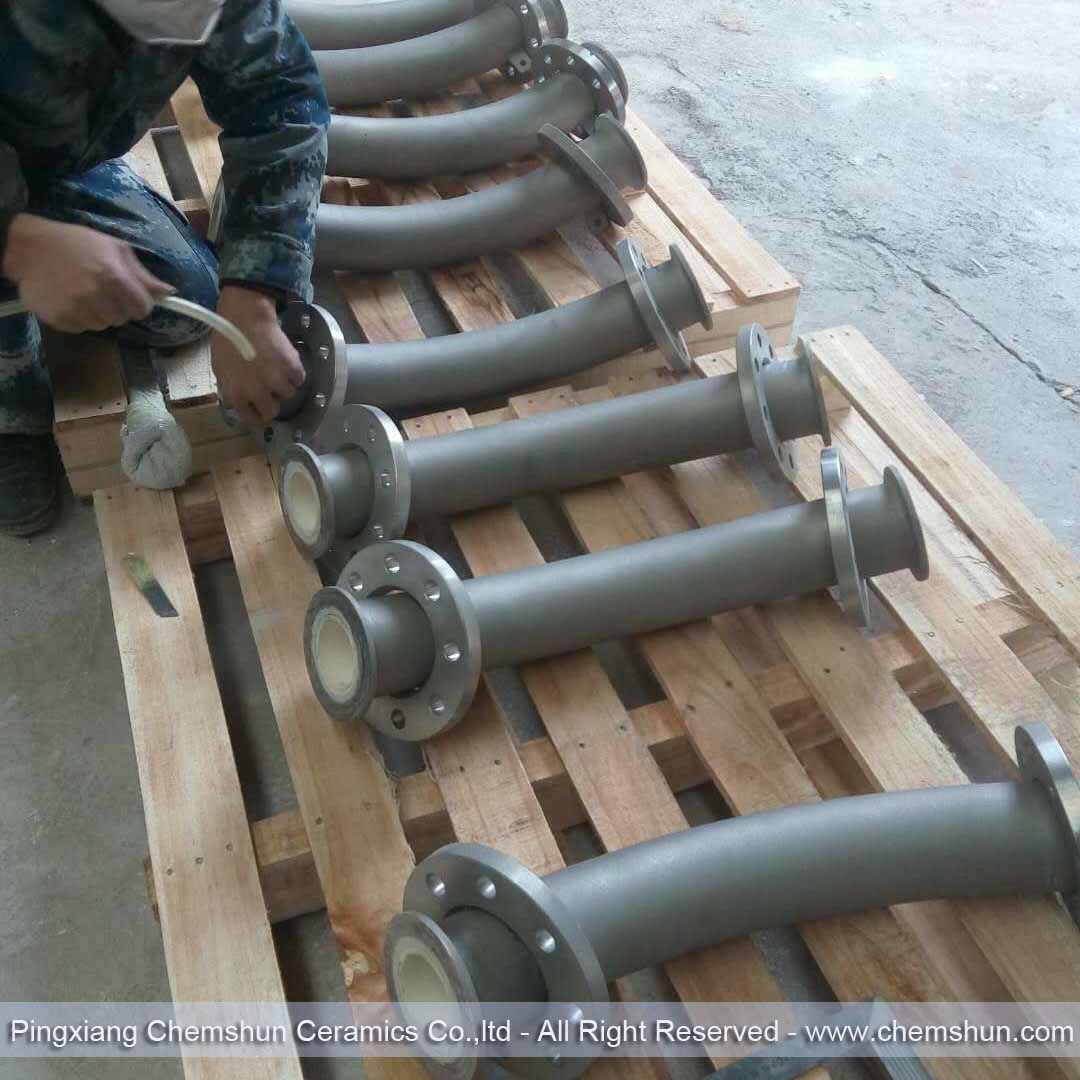

Product Name：Ceramic Lined Pipe Mainly For Lithium Battery Industry
- Product Category：
- Product Details：
- E-Mail:
-
Features:
1) Wear resistance: under the same conditions, it is 10 times more wear-resistant than ordinary pipes;
2) Corrosion resistance: ceramic lining and inorganic binder can resist acid and alkali corrosion;
3) Resistant to medium temperature: It can be operated at 350℃ for a long time, and the general working conditions can be satisfied;
4) The inner and outer walls are smooth, and the air flow is unobstructed: the smooth surface allows materials to pass freely without material hanging and blocking;
5) Easy to install: 1/3 lighter than ordinary pipes, easy to carry, save manpower, easier to install, and can easily erect the pipe higher;
Chemical Property :
Item | 92% Al2O3 | 95% Al2O3 | 96% Al2O3 | 99% Al2O3 |
Al2O3 | ≧92% | ≧95% | ≧96% | ≧99% |
Na2O | ≦0.4% | ≦0.2% | ≦0.1% | ≦0.15% |
K2O | ≦1.06% | ≦0.5% | ≦0.54% | ≦0.25% |
Fe2O3 | ≦0.01% | ≦0.01% | ≦0.01% | ≦0.01% |
SiO2 | ≦4.7% | ≦3.28% | ≦2.5% | ≦0.2% |
Physical Property :
Item | 92% AL | 95% AL | 96% AL | 99% AL |
Density (g/cm3) | ≧3.62 | ≧3.68 | ≧3.8 | ≧3.9 |
Moh’s hardness | 9 | 9 | 9 | 9 |
Vickers hardness | 1200 | 1300 | 1400 | 1400 |
Bending strength | 260 | 300 | 380 | 420 |
Fracture toughness | 3 | 3.2 | 4 | 4.5 |
Wear damage | 1.6g | 1.2g | 0.7g | 0.6g |
Ceramic Segments Elbow Pipe Product Size :
Size range from ID 20mm to ID 200mm
