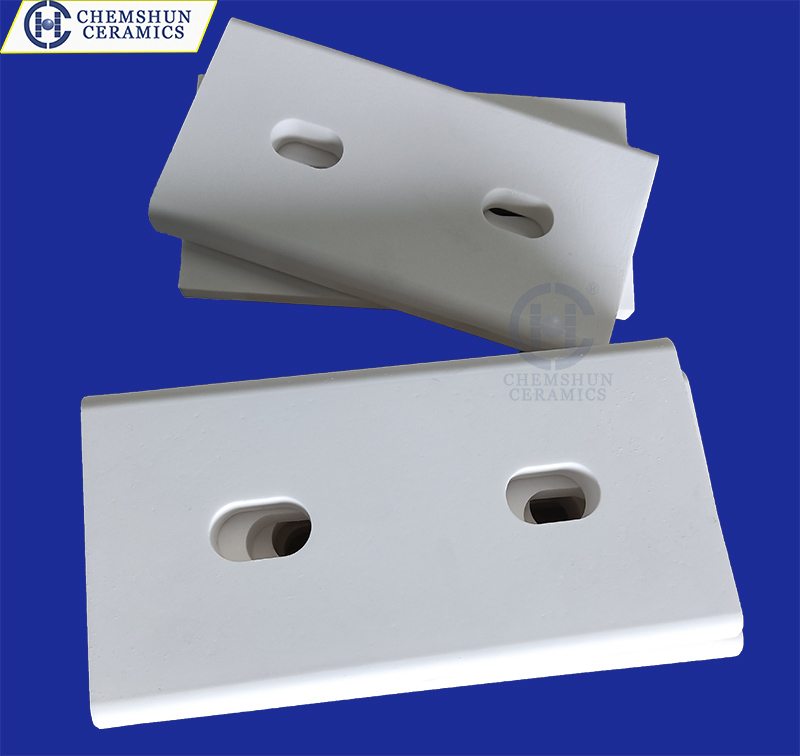

Product Name:Alumina Ceramic Tile
- Product Category:
- Product Details:
- E-Mail:
Product Description
Wear resistant Aluminum oxide ceramic tile liner,wear plates al2o3 ceramic is very normal abrasion resistant products, widely used in mining, chemical, steel making, port and cement industries to prevent wear, impact and corrosion of machinery. Products can be customized and installed in various types including adhesive, irregular-shape and assembly types. Its advantages of these alumina tile lie in their high level of strength, hardness, anti-abrasiveness and performance and these advantages contribute to the service life of the facility, savings in facility maintenance costs and uninterrupted operation for improved operational efficiency as they protect your facilities at economic price.
Feature
-Excellent corrosion resistance property.
-Easily handled size and weight.
-Excellent heat resistance property.
-Excellent impact resistance property.
-Fast and safe installation.
-Lower production and maintenance cost.
Chemshun Ceramic Advantages
-Professional technical team to afford CAD designs.
-Professional installation team to afford install service.
-Well established process as per international standards.
-Accept the standard and pre-engineered tiles.
Technical Data Sheet
S.No. | Attributes | Unit | CHEMSHUN 92 I | CHEMSHUN92 II | CHEMSHUN 95 | CHEMSHUN ZTA |
1 | Alumina Content | % | 92 | 92 | 95 | 70-75 |
ZrO2 | % | 25-30 | ||||
2 | Density | g/cc | ≥3.60 | ≥3.60 | >3.65 | ≥4.2 |
3 | Color | - | White | White | White | White |
4 | Water Absorption | % | <0.01 | <0.01 | 0 | 0 |
5 | Flexural Strength | Mpa | 270 | 300 | 320 | 680 |
6 | Moh's Density | Grade | 9 | 9 | 9 | 9 |
7 | Rock Well Hardness | HRA | 80 | 85 | 87 | 90 |
8 | Vickers Hardness(HV5) | Kg/mm2 | 1000 | 1150 | 1200 | 1300 |
9 | Fracture Toughness (Min) | MPa.m1/2 | 1000 | 3-4 | 3-4 | 4-5 |
10 | Compressive strength | Mpa | 850 | 850 | 870 | 1500 |
11 | Thermal Expansion Coefficient | 1x10-6/ºC | 8 | 7.6 | 8.1 | 8.3 |
