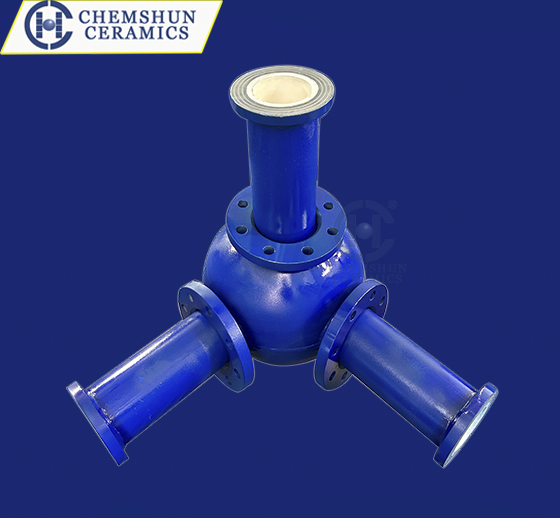

Product Name:Alumina ceramic lined Y type pipe
- Product Category:
- Product Details:
Wear-resistant ceramic pipe: used in thermal power, metallurgy, steel, coal, cement, petroleum, chemical and other industries pneumatic conveying system elbow and pipe. - E-Mail:
Product characteristics
Wear resistance: under the same conditions, 10 times wear-resistant than ordinary pipes;
Corrosion resistance: ceramic lining and inorganic adhesive can resist acid and alkali corrosion;
Medium temperature resistance: it can run at 350℃ for a long time, and the general working conditions can be met;
The inner and outer walls are smooth, and the air flow is smooth: the smooth surface enables the material to pass freely without hanging and blocking the material;
Easy to install: 1/3 lighter than ordinary pipes, easy to handle, save manpower, easier to install, faster, can easily set up higher pipes;
Reduce the load of support and hanger equipment and save material cost.
Chemical index
Item | 92alumina | 95alumina | 96alumina | 99alumina |
Al2O3 | 92% | 95% | 96% | 99% |
Na2O | ≤0.4% | ≤0.2% | ≤0.1% | ≤0.15% |
K2O | ≤1.06% | ≤0.5% | ≤0.54% | ≤0.25% |
Fe2O3 | ≤0.01% | ≤0.01% | ≤0.01% | ≤0.01% |
SiO2 | ≤4.7% | ≤3.28% | ≤2.5% | ≤0.2% |
Physical index
Item | 92alumina | 95alumina | 96alumina | 99alumina |
Density (g/cm3) | ≥3.62 | ≥3.68 | ≥3.8 | ≥3.9 |
Moh's hardness (Grade) | 9 | 9 | 9 | 9 |
Vickers hardness (HV10) | 1200 | 1300 | 1400 | 1450 |
Bending strength (Mpa) | 260 | 300 | 380 | 420 |
Breaking tenacity (Mpa.M1/2) | 3 | 3.2 | 4 | 4.5 |
Wear loss | 1.6g | 1.2g | 0.7g | 0.6g |
Product specification
Our pipe sizes are φ20-300, which can be customized.
Chemshun Advantage
Our products have been exported to Australia, Chile, Peru, South Africa, the United States, Russia, Japan, Indonesia and other countries, we can provide wear-resistant ceramic technology solutions, will provide suitable for your requirements of products and quality service.
