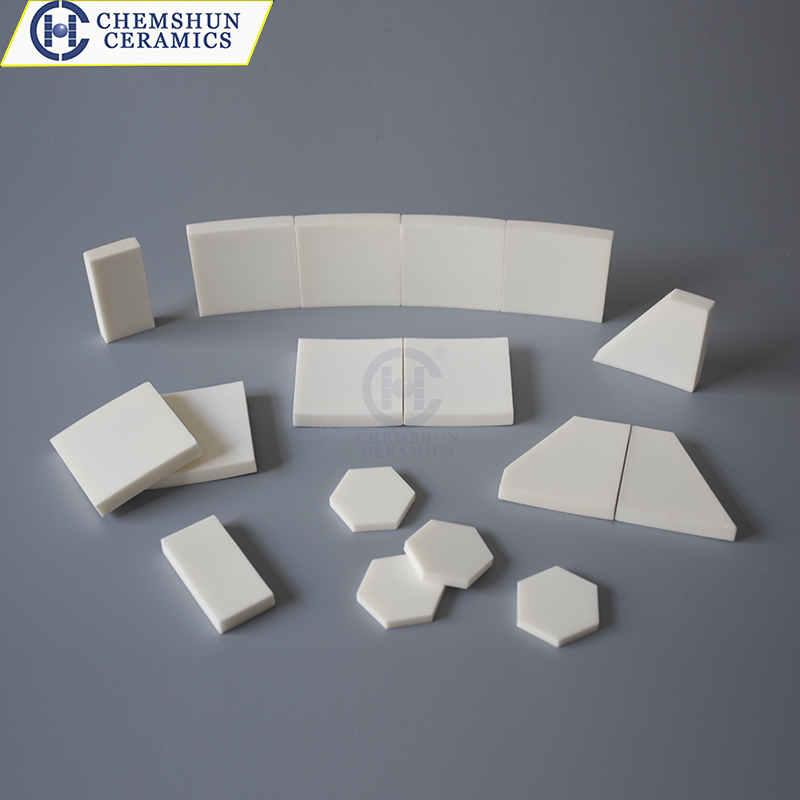

Product Name:Alumina bulletproof Ceramic
- Product Category:
- Product Details:
Chemshun has developed 99% Alumina Ballistic Ceramics and shipped them all over the world. 99 Alumina Ceramics have good properties such as high hardness,high strength,wear resistance and corrosion resistance. - E-Mail:
Modern Ceramic Composites have largely replaced steel as the non-structural armor in combat vehicles and soldiers body. Since Ceramic material relative to steel plate, it has been further improved, light weight, less than 1/2 density of steel plate, no ricochet phenomenon. Chemshun has developed 99% Alumina Ballistic Ceramics and shipped them all over the world.
99 Alumina Ceramics have good properties such as high hardness, high strength,wear resistance and corrosion resistance.

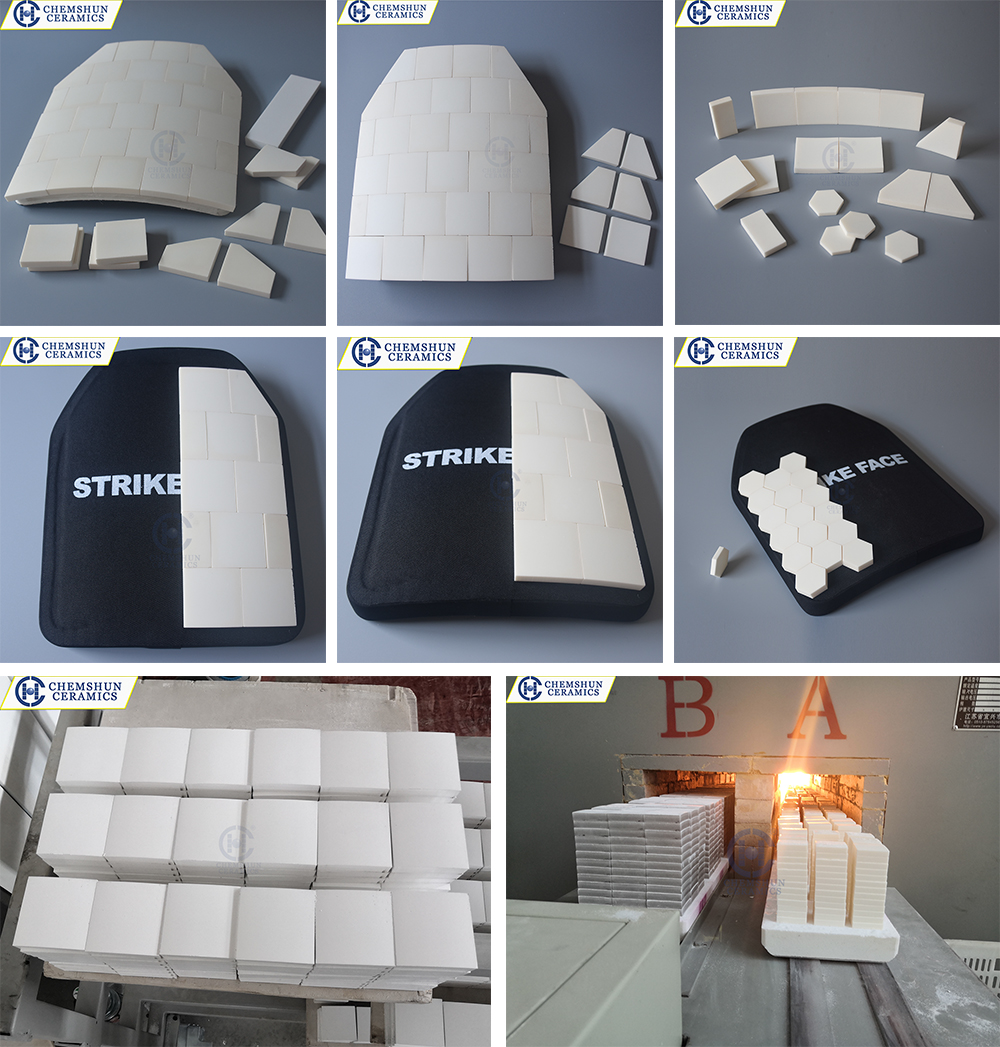

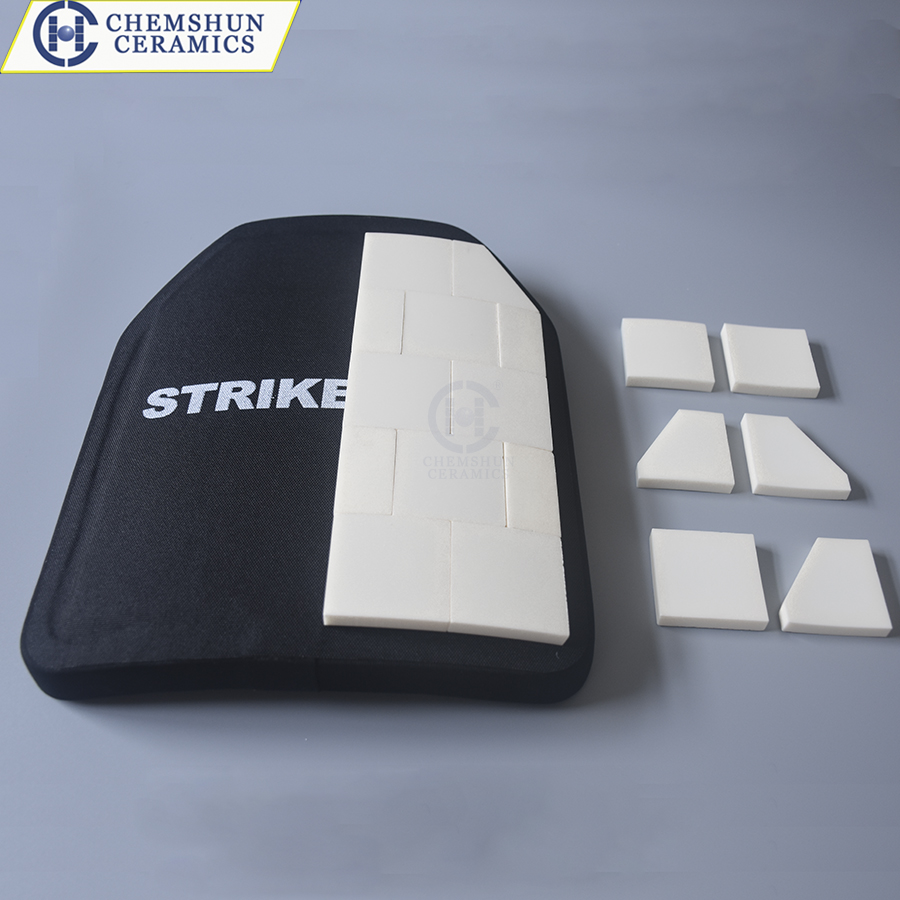

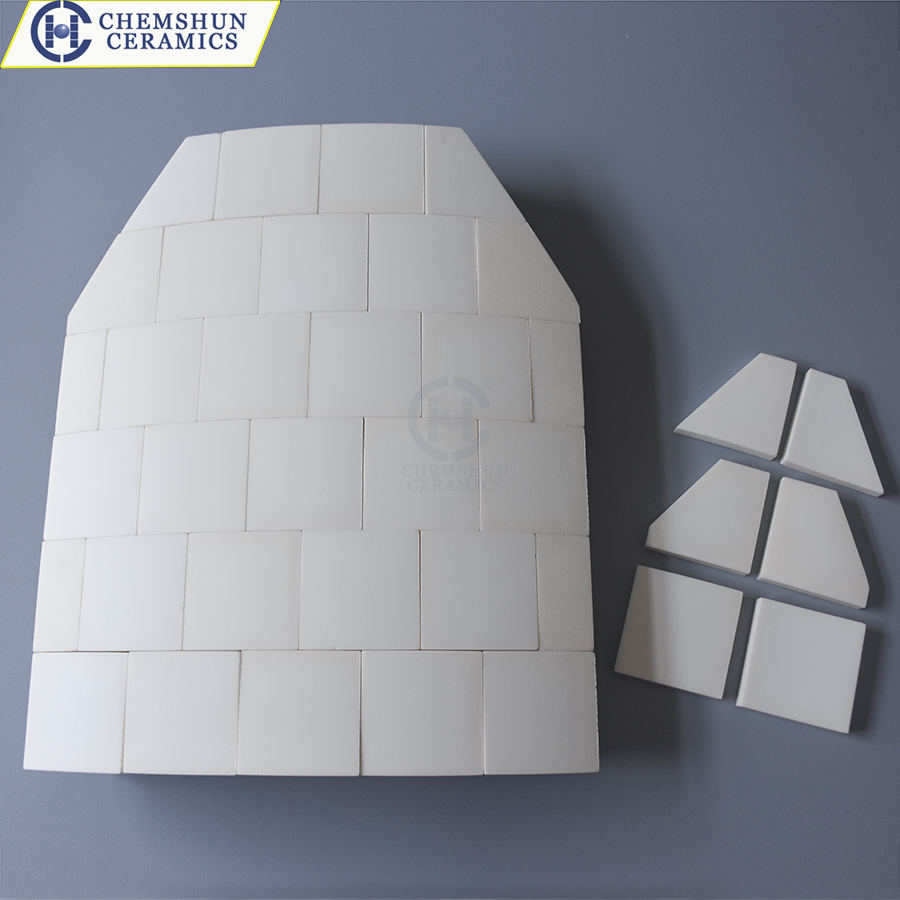

Also Our 99% Alumina Ballistic Ceramics can meet American standard NIJ III + / IV, widely used in bulletproof vests, Ballistic Shield, Bulletproof vehicles, armored vehicles and human protection.
Feature
Excellent abrasion resistance
Excellent Hardness
High density
Penetration resistance.
Smooth radian
Advantage
Size is stable and easily controlled.
Stable bulletproof performance
Small splicing gap
Low pitting value for shooting
Cost-effective Price
Light weight, can greatly reduce the load of the equipment.
Technical Data
Properties | Units | Value |
Al2O3 | % | ≥99 |
Density | g/cm3 | ≥3.88 |
Absorption | % | 0.05 |
Hardness | HV5 | >1500 |
Bending Strength | Mpa | ≥350 |
Young's Modulus | GPA | >320 |
Sonic Velocity | m/s | 10000 |
Dimension
Type | Unit | Size |
Square Tile | mm | 50x50xT5-12 |
Hexagonal Tile | mm | 30 |
Assembled Plate | mm | 200x250xT5-12 |
Assembled Plate | mm | 250x300xT5-12 |
Other specifications can be customized by customers.
