Product Name:Alumina Wear Pipe Tile Liner with Interlocking

  • Product Category:
    • Product Details:

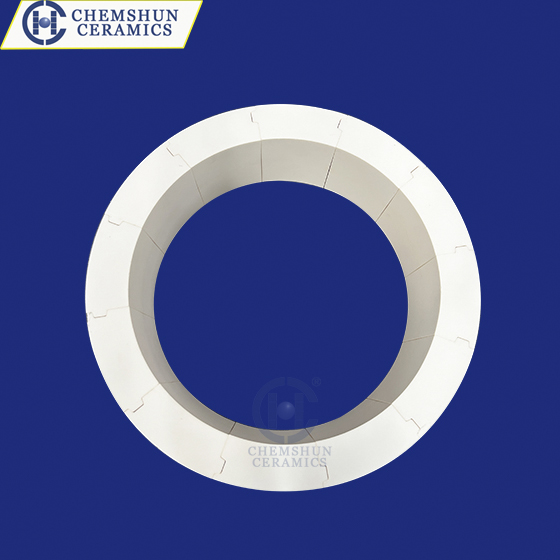

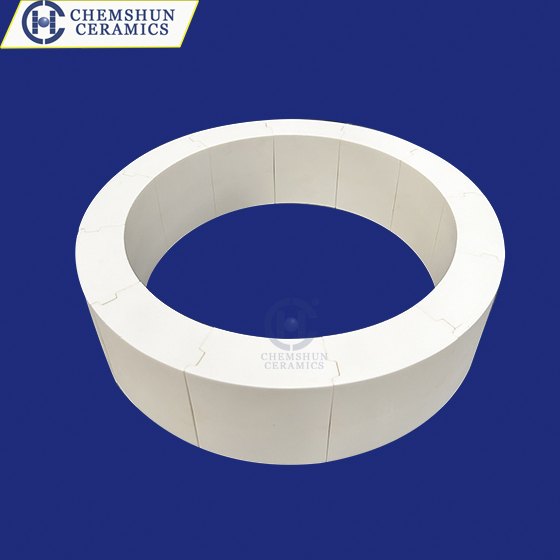

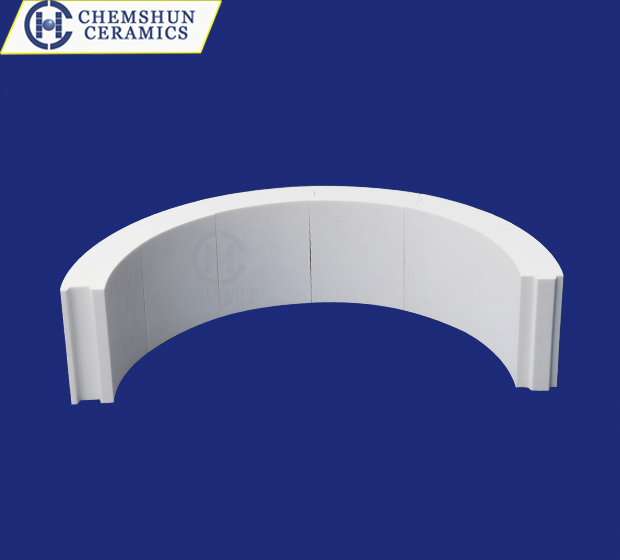

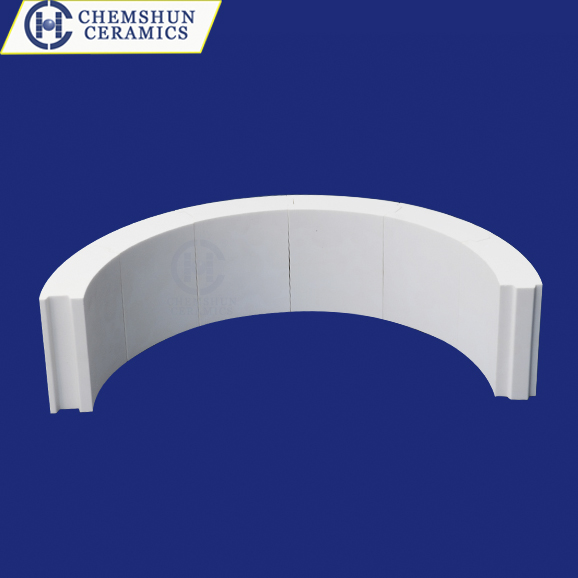

      This alumina pipe tile with interlocking is a newly designed one based on the normal pipe tile. Comapared the normal pipe tile,the groove and tounge locking enhances the adhereance between each tile,which makes the tiles more fastened during the installation. This new interlocking pipe tiles is a tendy to replace the normal pipe tiles.
    • E-Mail:

    This alumina pipe tile with interlocking is a newly designed one based on the normal pipe tile. Comapared the normal pipe tile,the groove and tounge locking enhances the adhereance between each tile,which makes the tiles more fastened during the installation. This new interlocking pipe tiles is a tendy to replace the normal pipe tiles.


    Chemshun Ceramic pipe tile sizes (mm):

    - 61*40/38*15

    - 75*35/32*40

    - 157*100*48/35

    - 150*53*13

    - 150*50/46*25

    - 150*33/28*13

    - 101.6*75.4/87.3*25

    - 80/72*25*20

    - 152*53/49*25


    Advantages:

    - Excellent abrasion resistance (Scuff resistance), its theoretic wear resistance is 170times of chrome steel and 260 times of manganese steel materials

    - Good corrosion resistance (Anticorrosion)

    - Easy application (Quick installation)

    - Long working life

    - Good impact resistance.

    - Good thermal shock resistance. Smooth surface and good adherence resistance


    Application:

    - As alumina ceramic wear-resisting lining of coal-electing equipment on coal industry

    - Cements industries;

    - As wear resistant alumina ceramic lining of fall funnel, lining of wear-resisting pipe and bender,

    - As wear resistant alumina ceramic liner of material tranfer pipe and chute, etc, on steel industry.

    - As wear ceramic liner for l thansfer equipment;

    - As Alumina ceramic wear plates Inside and outside surface of powder separating equipment on iron and steel works;

    - Ceramics, mines and other grinding equipment lining;

    - Parts of equipment hermal and power plants;

    - Grinding systems Mixer Application areas

    - Separator systems chain conveyor

    - Cyclones diffusor

    - Sinter slurry ducts

    - Hooper High temperature cyclones

    - Ventilator housing salt plants


    Physical properties:

    S.No.

    Attributes

    Unit

    CHEMSHUN 92 I

    CHEMSHUN92 II

    CHEMSHUN 95

    1

    Alumina Content

    %

    92

    92

    95

    2

    Density

    g/cc

    ≥3.60

    ≥3.60

    >3.65

    3

    Color

    -

    White

    White

    White

    4

    Water Absorption

    %

    <0.01

    <0.01

    0

    5

    Flexural Strength

    Mpa

    270

    300

    320

    6

    Moh's Density

    Grade

    9

    9

    9

    7

    Rock Well Hardness

    HRA

    80

    85

    87

    8

    Vickers Hardness(HV5)

    Kg/mm2

    1000

    1150

    1200

    9

    Fracture Toughness (Min)

    MPa.m1/2

    1000

    1150

    1200

    10

    Compressive strength

    Mpa

    850

    850

    870

    11

    Thermal Expansion Coefficient

    1x10-6/ºC

    8

    7.6

    8.1

    (25-1000ºC)

    12

    Maximum operation temperature

    ºC

    1450

    1450

    1500



    Service:

    Any requirment about chemshun Alumina Ceramic Square Mosaic Tile , 92% Alumina Pipe Tile ,Wear Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com
