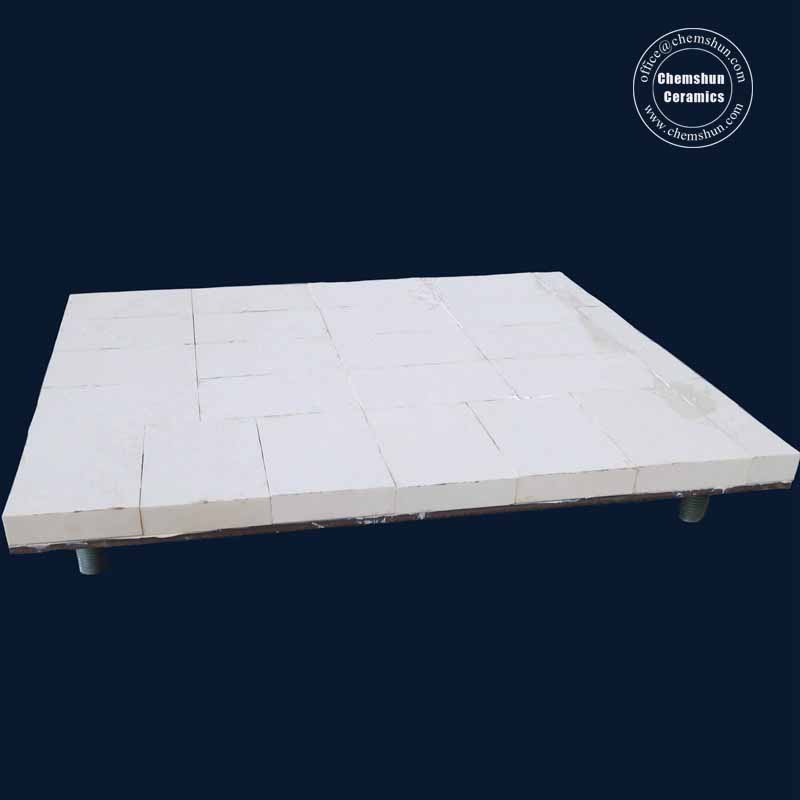

Alumina Ceramics Lined Steel Sheet

ceramic lined steel plate is easy to be installed with bolt or welding , which greatly helps users to save installation time .

Product Description :

Different from wear ceramic liner construction, Chemshun alumina ceramics lined steel sheet is that alumina ceramic lining pastes in the steel sheet with epoxy resin adhesive, this finished ceramic lined steel plate is easy to be installed with bolt or welding , which greatly helps users to save installation time .chemshun ceramics can design more sizes and shapes according to customer’s equipment parts .

Products Advantages :

 1)  Save your installation time

 2)  Various Sizes and shapes can be customized

 3)  Full set of size bricks prepared without cut

 4)  Installation easily with bolt

 5)  Superior abrasion and impact resistance

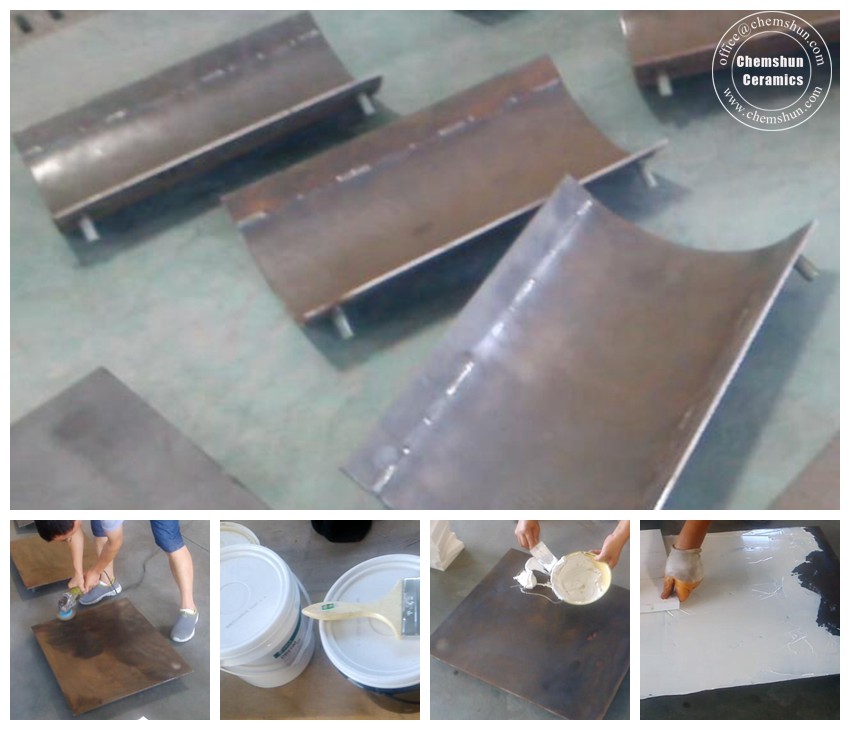

Installation Process :

1: Producing steel plate with bolt according to equipment sizes

2: Designing alumina ceramics tiles based on steel plate sizes

3: Preparing epoxy resin adhesive

4: Cleaning the rust in steel plate by polishing

5: Mixing the epoxy resin adhesive with correct proportion

6: Applying epoxy resin adhesive on steel plate

7: Carefully putting the ceramic tiles on steel plate according to designing drawings

8: Fixing the alumina ceramics by hammer for air removal

Product Technical Data （1：wear resistant ceramic)

Product PDF Brochure Download
