Product Name:Alumina Ceramic Round Sheet
- Product Category:
- Product Details:
- E-Mail:

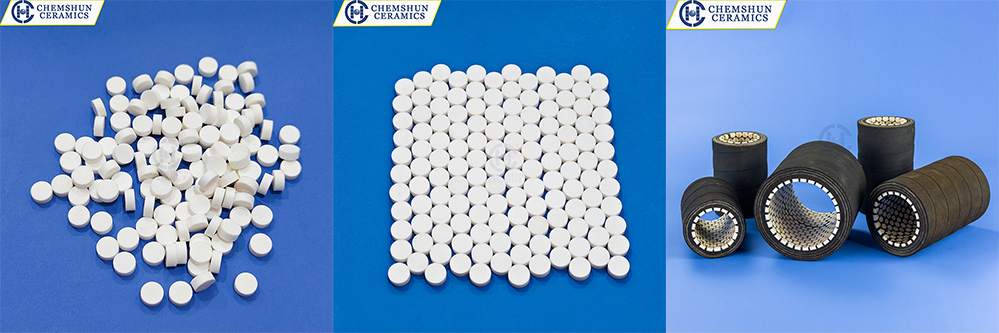

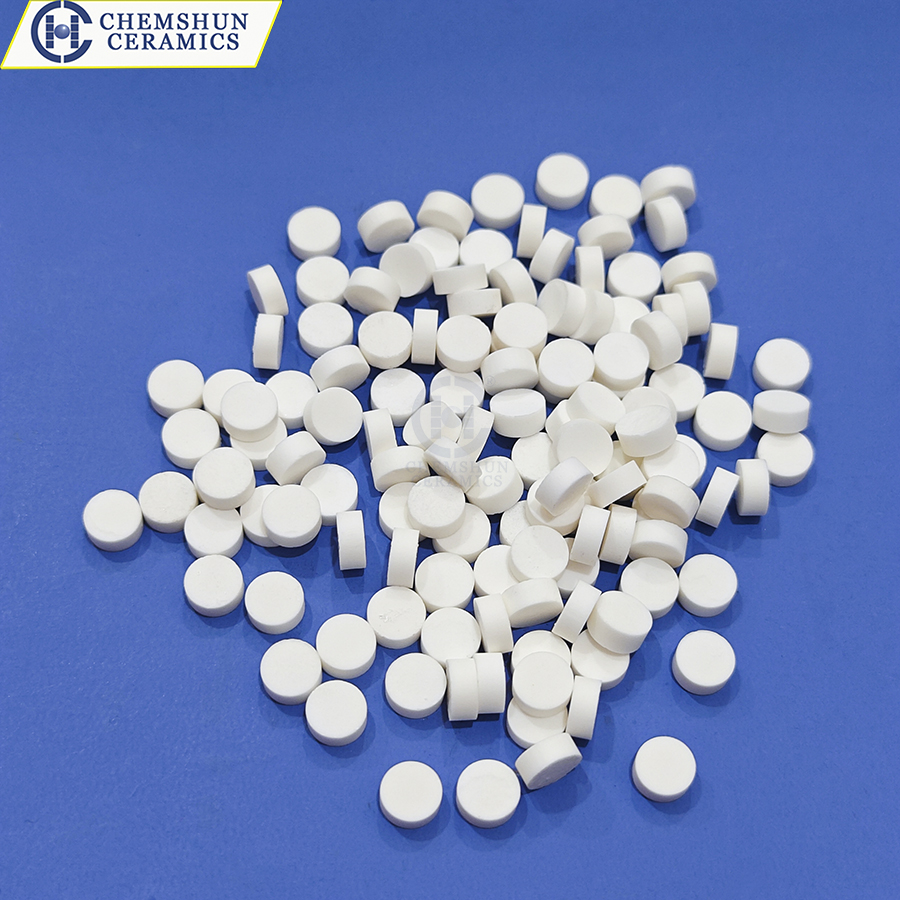

Chemshun ceramics as China manufacturer mainly offers excellent mechanical properties , superior wear resistance , and desirable corrosion performance. Chemshun ceramics manufacture and design pre-engineered standard and customized size and shape according to customer's abrasion problem, like types of abrasion , system and equipment design, operating temperatures and materials, application parameters ect. Chemshun can produce ceramic round sheet (ceramic disc wafer) with alumina content including 92% Al2O3, 95% Al2O3.
Advantage
- High hardness
- Superior abrasion resistance
- Corrosion and chemical resistance
- Light weight with low density
- Can be applied in all kinds industrial abrasion solution field
Application
- mining industry
- Cement industry
- Coal handling industry
- Steel industry
- Port industry
- Power plant
...
Technical Data:
1) Chemical data :
Al2O3 | SiO2 | CaO | MgO | Na2O |
92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
2) Physical data :
Specific gravity (g/cc) | >3.60 |
Apparent porosity (%) | 0 |
Flexural Strength (20ºC, Mpa) | 280 |
Compressive strength (20ºC, Mpa) | 850 |
Rockwell hardness (HRA) | 80 |
Vickers hardness (hv) | 1050 |
Moh's hardness (scale) | ≥9 |
Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
Crystal Size (μm) | 1.3~3.0 |
Related Keywords :
Ceramic lining pieces Wear resistant ceramic disc wafer Alumina ceramic cylinder Ceramic tile Ceramic lined pipeCompany name: | Please fill in your company name |
