Product Name:Alumina Ceramic Lined Pipe (Customizable)
- Product Category:
- Product Details:

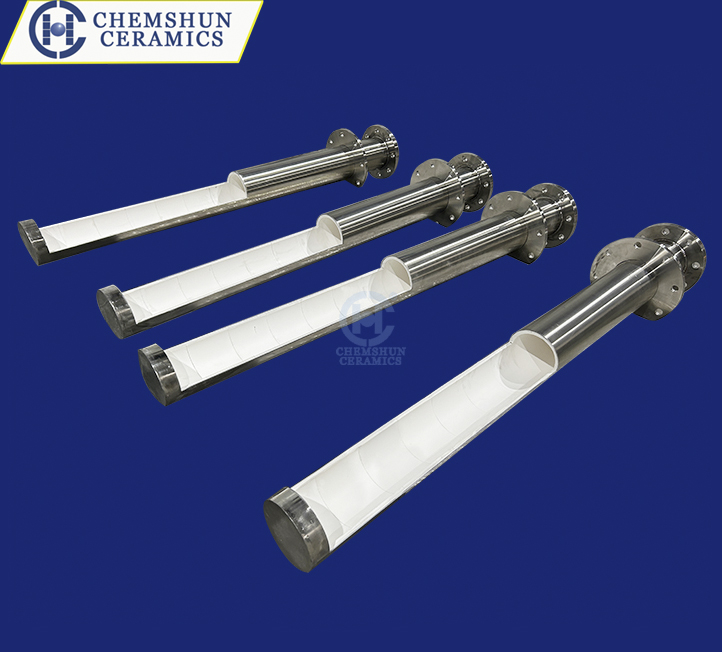

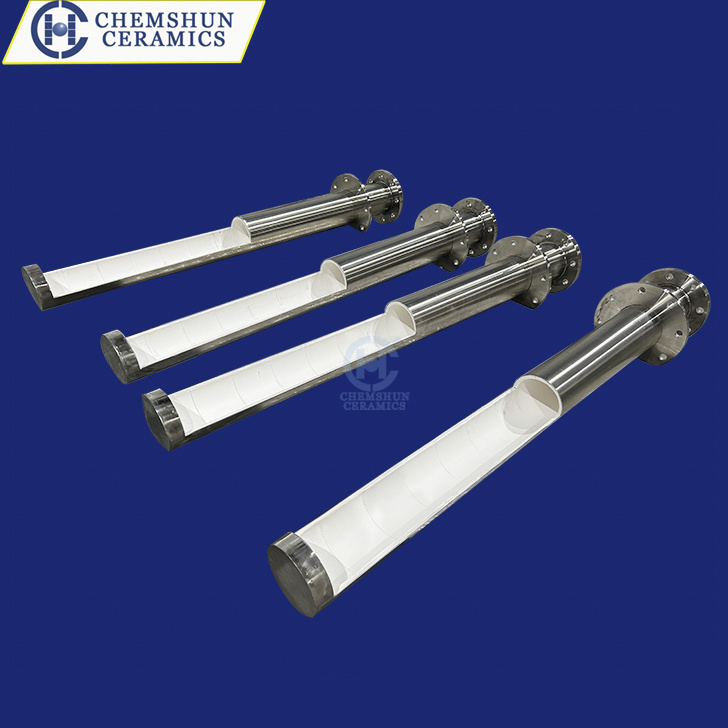

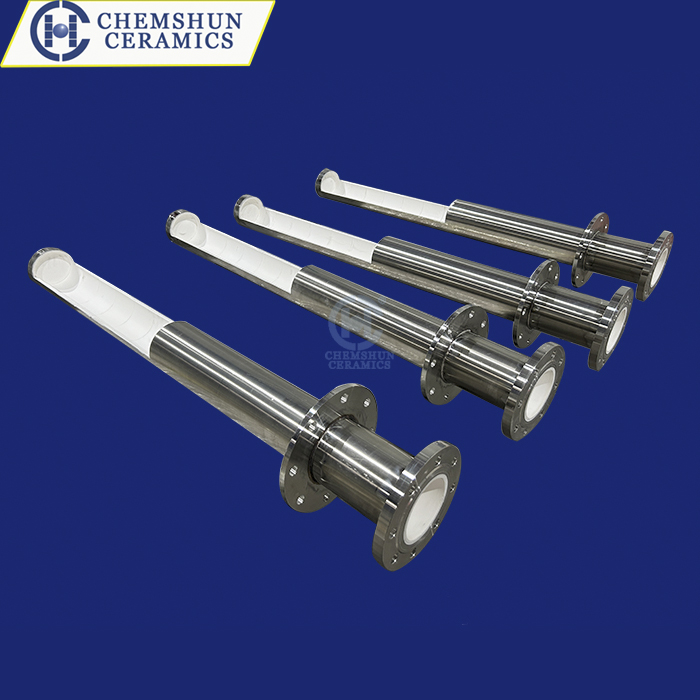

Chemshun wear resistant alumina ceramic pipe liner protection conveying pipeline from abrasion damage - E-Mail:
Abrasive pipe tube is a high density wear resistant material made of high purity alpha alumina powder and isostatic pressing technology.It has advantages of wear resistance,corrosion resistance,impact resistance,high temperature resistance etc. Abrasive pipe tube is quickly applied in conveying pipework instead of steel pipe and rubber lined pipeline. A ideal materials resistant to wear and corrosion protection material conveying.It is widely used in mining,metallurgy,chemical,electric power industries of coal powder,ash,liquid
Product advantage:
-- High hardness.
-- Superior abrasion.
-- Corrosion and chemical resistance.
-- Light weight.
-- Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.
-- Good fluidity:Smooth surface ensure the free flow of material without blocking.
Chemshun Pipe Size Available
Chemshun pipe Sizes | |
ID: 10mm~500mm | Thickness and length according to customer’s needs |
more sizes and customized size acceptable |
Application industry:
-- mining industry
-- Cement industry
-- Coal handling industry
-- Steel industry
-- Port industry
-- Power plant
Chemical Composition:
Al2O3 | SiO2 | CaO | MgO | Na2O |
92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
Physical properties:
Specific gravity (g/cc) | >3.60 |
Apparent porosity (%) | 0 |
Flexural Strength (20℃, Mpa) | 280 |
Compressive strength (20℃, Mpa) | 850 |
Rockwell hardness (HRA) | 80 |
Vickers hardness (hv) | 1050 |
Moh’s hardness (scale) | ≥9 |
Thermal Expansion (20-800℃, x10-6/℃) | 8 |
Crystal Size (μm) | 1.3~3.0 |
