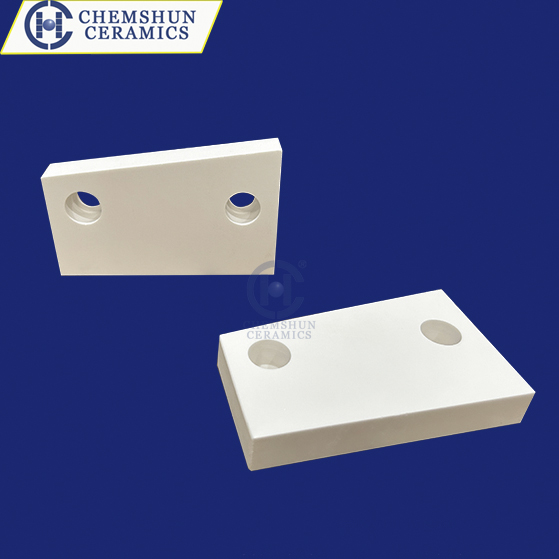

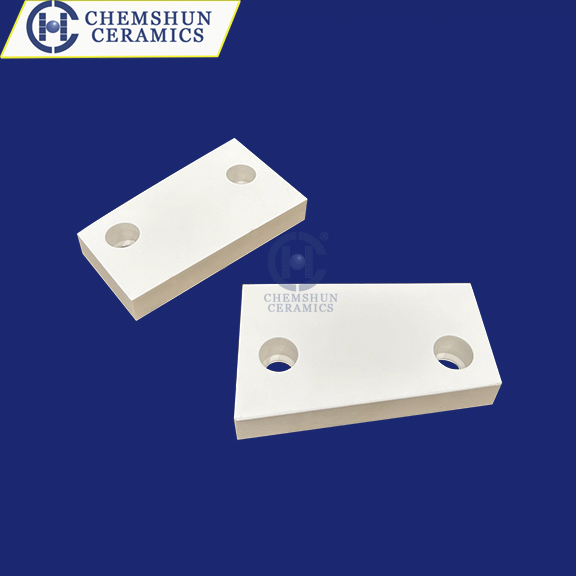

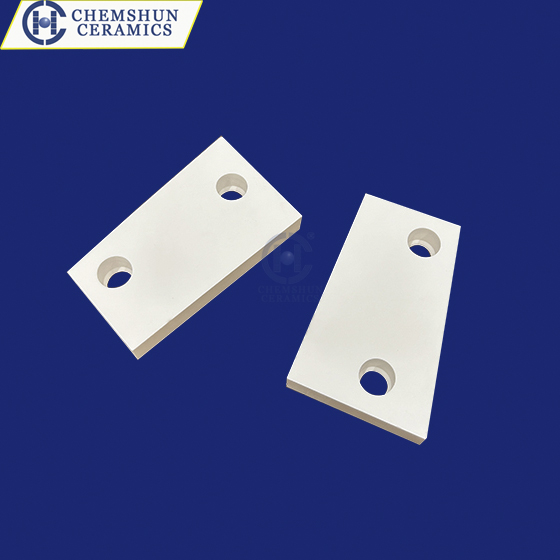

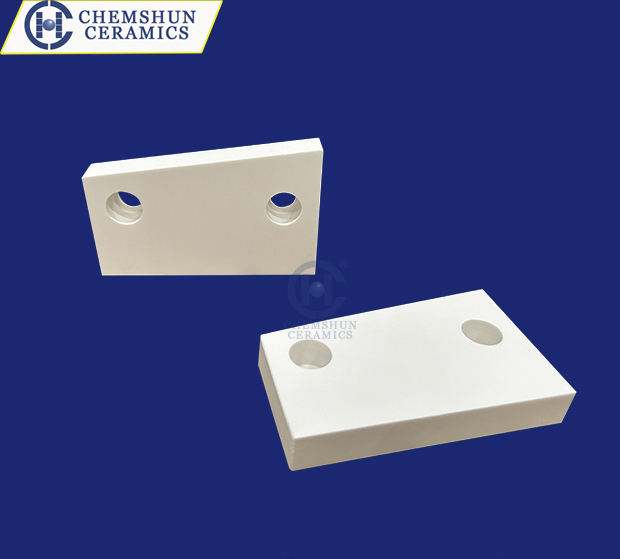

Product Name:Abrasion Resistant Cutting Ceramic Tile Liner

  • Product Category:
    • Product Details:
      Cutting tiles is much different from standard wear ceramic liner tile . Which is cutted into special shape tile from standard tiles.
    • E-Mail:

    Cutting tiles is much different from standard wear ceramic liner tile . Which is cutted into special shape tile from standard tiles. Cutting tiles is most perfect for complex equipment components. If standard alumina ceramic lining lined complex components, it will results in gaps between the tiles, and the epoxies used to bond the tiles wear rapidly, as wear progresses, the tile surface becomes increasingly uneven, resulting in accelerated wear. Chemshun cutting tiles can minimized the gaps and ensure a very tight fit with minimum space at the joints.


    Product Advantages

    - CAD design and precision controlled tailor, guarantee all pre-engineered tiles geomitric dimension

    - Easily and exactly fixing onsite, installation person just according to Chemshun Installation drawing directly fix and do not measure the equipment and lining tiles size and do not cut the tiles.

    - Optimize the equipment of geometric dimension and improve the lining life. It's most suitable for the complex equipment device.


    Chemshun Ceramics wear-resistant product application industries:

    - Mining

    - Mineral processing (mineral beneficiation)

    - Power generation

    - Cement

    - Petro-Chemical Refining and Production

    - Coal washery

    - Steel

    - Defense (personal & vehicle armour).

    Common items equipment need wear linings are:

    Agitators; Bends; Branches; Chutes; Classifiers; Cones; Cyclones; Distribution Box; Ejectors; Fans; Feeders; Hopper; Launders; Manifolds; Mills; Orifice; Pipes; Pipe Bends; Pipe fitting; Pulley lagging; Silos; Splitter Boxes; Spoons; Square Bends; Square to Round; Tanks; Troughs; Transfer points; T-Pieces; Y-Pieces etc.


    Product Property

    S.No.

    Attributes

    Unit

    CHEMSHUN92

    CHEMSHUN95

    1

    Alumin Content

    %

    92

    95

    2

    Density

    g/cc

    3.60

    3.68

    3

    Color

    -

    White

    Pale Ivory

    4

    Water Absorption

    %

    0

    0

    5

    Flexural Strength

    Mpa

    280

    300

    6

    Moh's Density

    Grade

    9

    9

    7

    Rock Well Hardness

    HRA

    80

    86

    8

    Vickers Hardness(HV10)

    Kg/mm2

    1050

    1190-1220

    9

    Compressive strength

    Mpa

    850

    950-1000

    10

    Thermal Expansion Coefficient
    (25-1000 )oc

    1x10-6/ oc

    7.6

    8.3

    11

    Maximum operation temperature

    oc

    1250

    1250
