Product Name：Al2O3 23~30% Inert Ceramic Balls
- Product Category：
- Product Details：
Chemshun Inert alumina ceramic balls are to increase the distribution spots of gas or liquid - E-Mail:
-

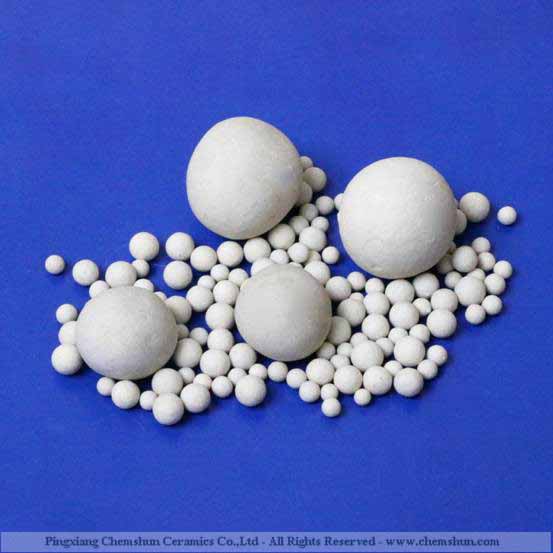

Al2O3 23~30% Inert Ceramic Balls
Chemshun Ceramics offer Al2O3 17~30% ceramic balls as catalyst carrier
Product Description:
Chemshun Inert ceramic balls are to increase the distribution spots of gas or liquid , widely utilized as the covering or supporting materials of the catalyst in the reactors and the packing in the column in such varies areas as petroleum , chemical industry , chemical fertilizer, natural gas and support or protect the active catalyst , which especially have the comparatively lower mechanical strength
Application :
| Alkylation | Catalytic reforming |
| Dehydrogenation | Hydrofining |
| Desulfurization | Isomerisation |
| Catalytic cracking | Powerforming |
| Catalytic conversion | Thermal cracking |
| Catalytic oxidation | and other processes |
Geometric Properties:
Diameter | Diameter (mm) | Crushing strength (kg/particle) |
| 23~30 % | ||
| 1/8” | 2-4 | >34 |
| 1/4” | 5-8 | >91 |
| 3/8” | 10-12 | >102 |
| 1/2” | 12-14 | >195 |
| 3/4” | 18-21 | >490 |
| 1” | 24-27 | >690 |
| 1-1/4” | 32-34 | >980 |
| 1-1/2” | 35-40 | >980 |
| 2” | 48-52 | >980 |
Chemical Composition:
| Item | Content |
| Heat resistance up to | Up to 1020 ℃ |
| Water absorption | < 0.4% |
| Ignition loss | <0.3% |
| Alkali resistance | >7 |
| Acid resistance | >85 % |
| Bulk density (g/cm3) | > 99.8% |
| 1.38~ 1.40 |
Physical Properties:
| Item | Content |
| Heat resistance up to | Up to 1020 ℃ |
| Water absorption | < 0.4% |
| Ignition loss | <0.3% |
| Alkali resistance | >7 |
| Acid resistance | >85 % |
| Bulk density (g/cm3) | > 99.8% |
| 1.38~ 1.40 |
Product Technical Data （3：catalyst carrier series)
Chemshun Ceramics also recommends these other Catalyst Carrier:
Al2O3 15~22% Inert Ceramic Balls
7x7x4mm ceramic ring as benzene anhydride catalyst carrier
Al2O3 17~23% Inert Ceramic Balls
Al2O3 23~30% Inert Ceramic Balls
