ceramic rubber liner as wear resistant lining

Ceramic Rubber compound lining plateas one kind abrasion resistant lining is compounded by high alumina ceramics and excellent natural rubber through special process. The excellent damping performance of natural rubber greatly lowers the noise generated in the transportation, which fully settled a series of issues such as impact, abrasion and noise.By embedding the alumina ceramic lining tiles onto rubber, it is also possible to achieve some impact resistance which will prevent the tiles from cracking in areas of high impact. This achieves a vastly superior result to ceramic lining tiles which are bonded directly to the steelwork.

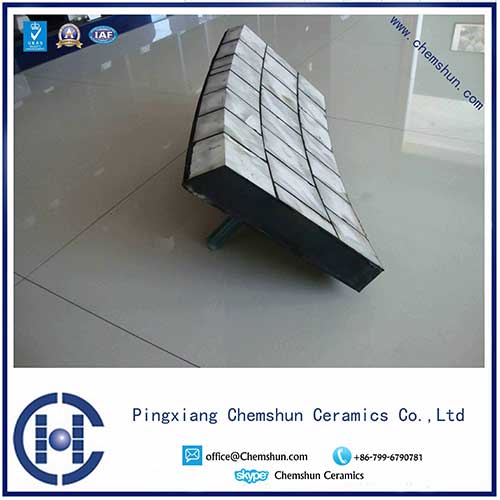

Made by 95% alumina ceramic lining tile(150mm*100mm*50mm),6mm rubber,6mm steel back for ceramic rubber liner

You can install by stud welding on the steel back

The ceramic is vulcanized into the rubber

The rubber is vulcanized with steel back

Also we can make the ceramic rubber lining according to your requirement

You can tell us your requirement,such as the alumina ceramic tile size,the ceramic rubber liner size and so on

welcome to Enquiry for this kind wear resistant lining!
