Hexagonal Ceramic Tile Mat
Chemshun alumina ceramic hexagonal tile mat as excellent wear resistant liner materials and easy fixing method are popular in the market.
Alumina ceramic hexagonal tile mat introduction:
Pingxiang Chemshun Ceramics co.,ltd asChina aluminaceramics manufacturer/factory/wholesaler/distributor of alumina ceramic hexagonal tile mat,alumina ceramic square mosaic ceramic sheet. The alumina mosaic sheet isan excellent wear resistant ceramic material. Alumina ceramic hexagonal tile mat is widely used as wear liner for pulley lagging, rubber ceramic plate, rubber hose and kinds ofirregular equipment. It can easilyinstallation and fixing by expoxy resin glue.
Alumina ceramic tile mat size:
Hexagonal tile | S12xT3mm, S12xT6mm, S12xT12mm, S12xT20mm |

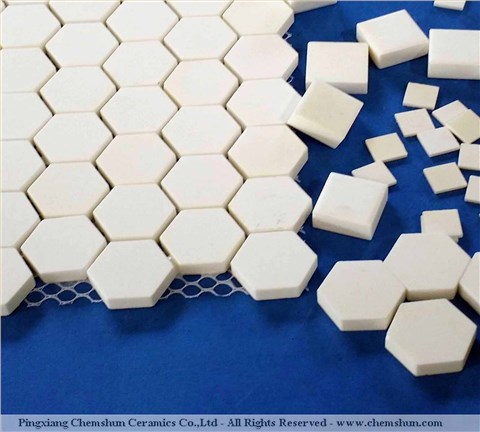

Square tile | 10x10x2mm, 10x10x3mm, 10x10x4mm, 10x10x8mm, 17.5x17.5x3~10mm, 20x20x4mm, 20x20x5mm, 20x20x6mm, 20x20x8mm, 20x20x10mm |
Mat Size | 150X150mm, 300x300mm, 500x500mm |
Sticked material | Acetate Cloth, Nylon net, Paper |
Advantages of hexagonal tile mat:
1) Small and flexable size. It can suitable most of irregular equipment.
2) High alumina content and high hardness:
Its rockwell hardness is HRA80-90 and the Moh's hardness is up to 9 grade with is only less than diamond. And its abrasion-resistant is more better than steel and stainless steel;
3) Excellent abrasion resistance and impact resistance.
4) Excellent corrosion resistance (resist the strong alkaline, strong acid slag and liquefied materials).
5) Excellent heat resistance (up to 1500 ℃).
6) Easily and quickly installation.
7) Smooth surface can be reduce barrage and friction coefficient to prolong the device service life.
8) Low density reduce the lined equipment weight and improve the equipment working effectiveness
9) Light weight:
Its density is 3.6-3.75g/cm3, it is only half weight of steel, and could reduce the load on equipment.

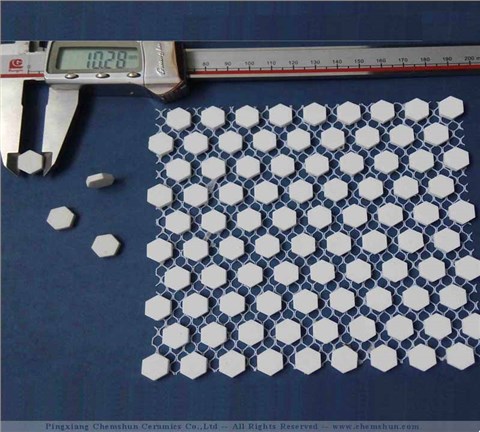

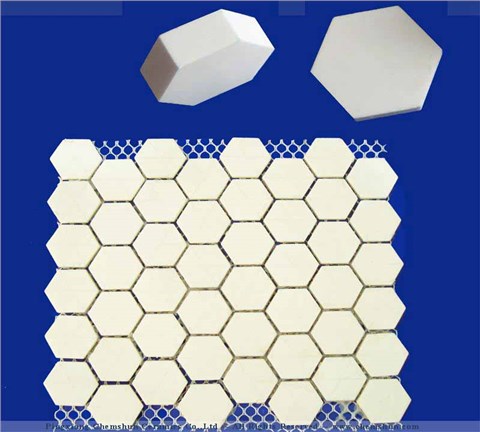

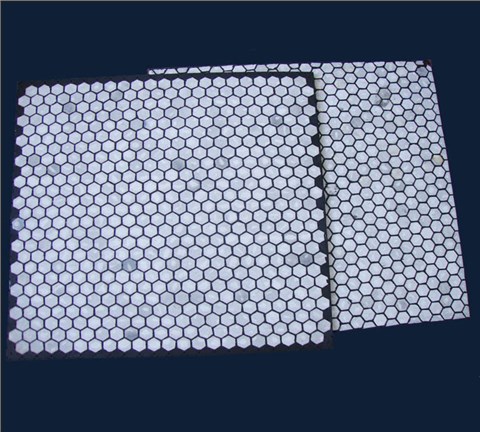

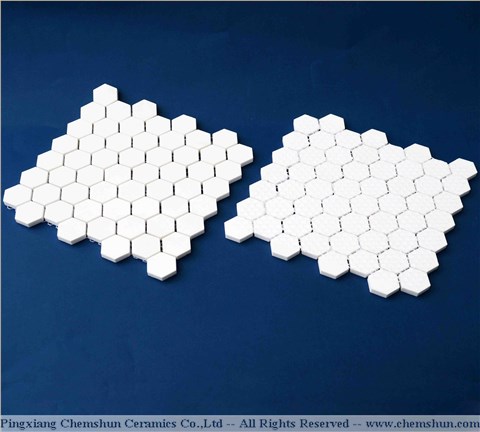

Hexagonal alumina tile mat

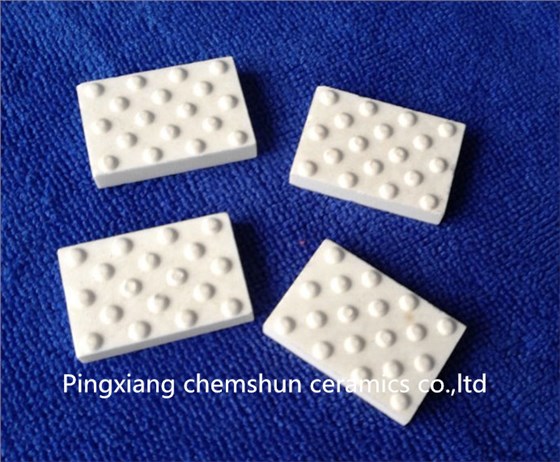

Other pulley lagging tile: Alumina ceramic tile with salient point

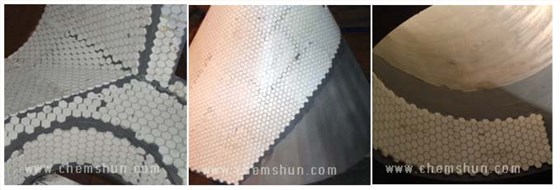

Application:

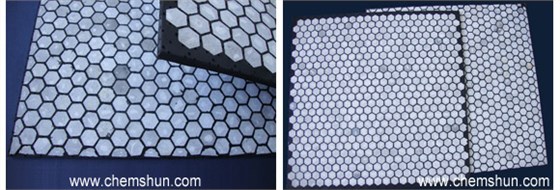

> Used to construct ceramic rubber plate as wear-and-impact-resistant lining.
>Used
as Alumin ceramic materials on the industries of chemical, mining,
metallurgical, cement etc.
> Directly fixing on the equipment, easy control and application.
> Used as component of ceramic bearing.

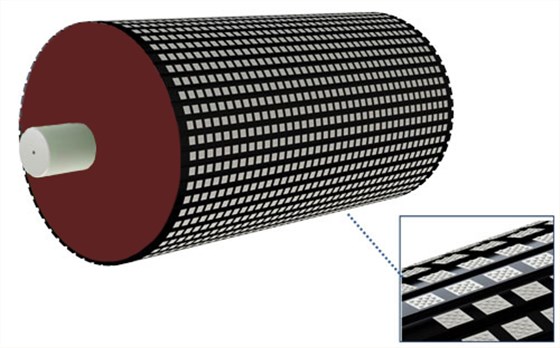

> Used for ceramic pulley lagging.
> Used for conveying engineering in mining industry.
Raw Material:
The wear resistance alumina ceramic hexagonal tile mat, square mosaic ceramic tile sheet is made by the high purity, super fine and single narrow particle high-quality grain alumina powder, which is spray-dried processing, formed by cold isostatic pressing, firing on 1520 º C~1650 º C temperature. Subject to Al2O3 content difference, we have 92% or 95% abrasion resistance ceramics.
Ceramic Properties:
| Properties | CHEMSHUN92 | CHEMSHUN95 |
| Al2O3 content (%) | 92 | 95 |
| Density (g/cc) | 3.60 | 3.68 |
| Color | White | Pale lvory |
Water absorption (%) | 0 | 0 |
Flexural strength (Mpa) | 280 | 300 |
Moh's Density （Grade） | 9 | 9 |
Rock well hardness (HRA) | 80 | 86 |
Vickers Hardness (HV10) | 1050 | 1190-1220 |
Compressive strength (Mpa) | 850 | 950-1000 |
Thermal expansion coefficient (25-100)℃(1*10-6/℃） | 7.6 | 8.3 |
Maxium operation temperature℃ | 1250 | 1250 |
Why choose Chemshun Alumina Ceramic Tile Mat
Product Technical Data（1：wear resistant ceramic)
